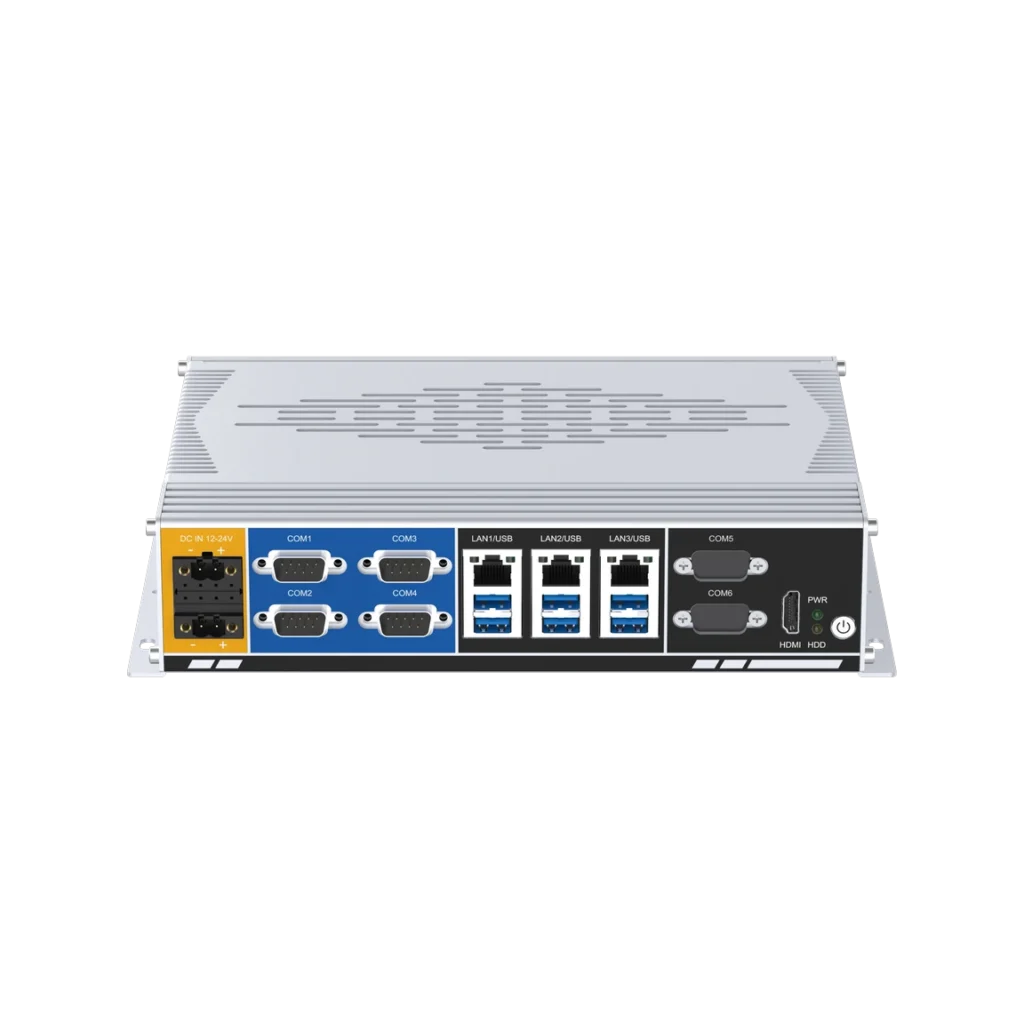

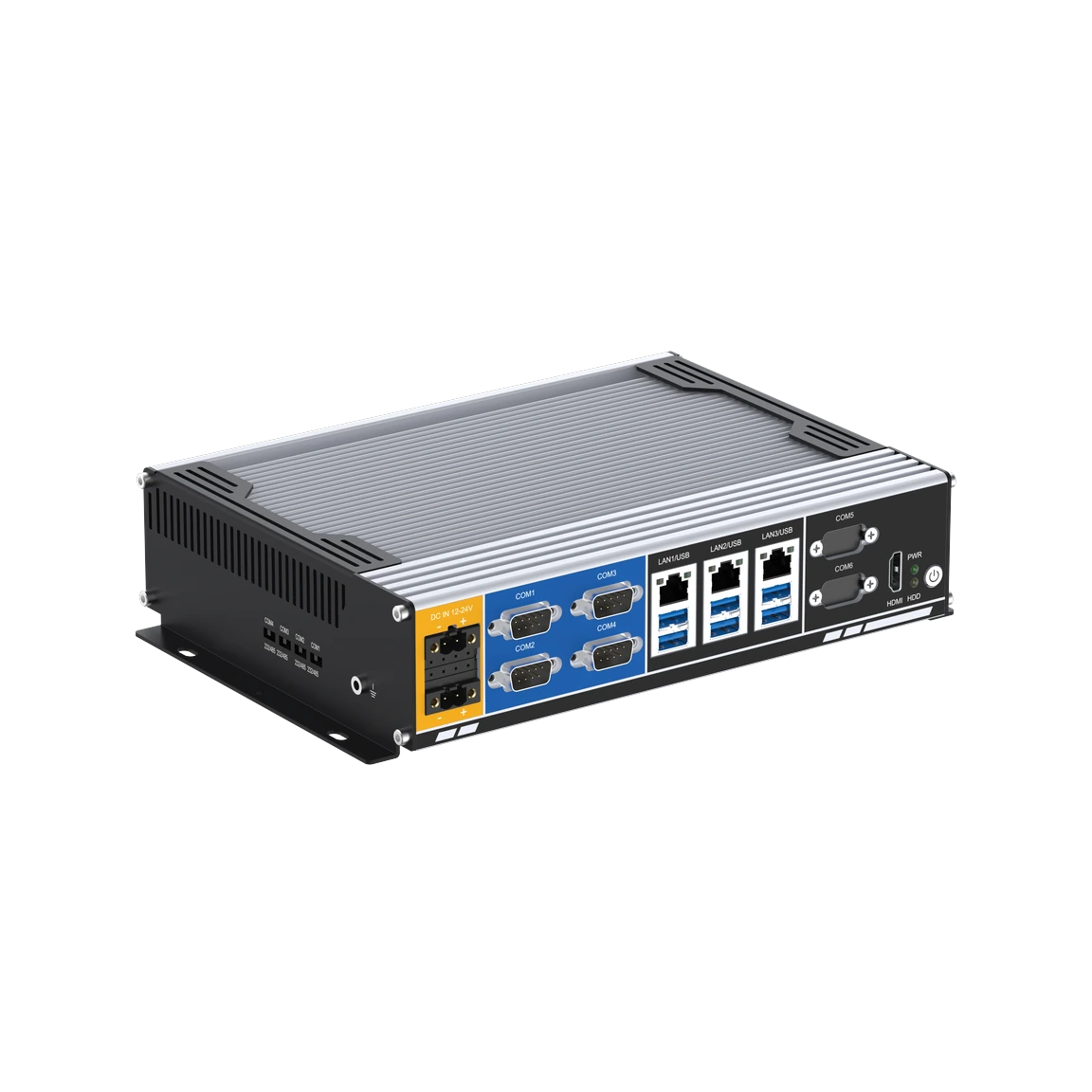

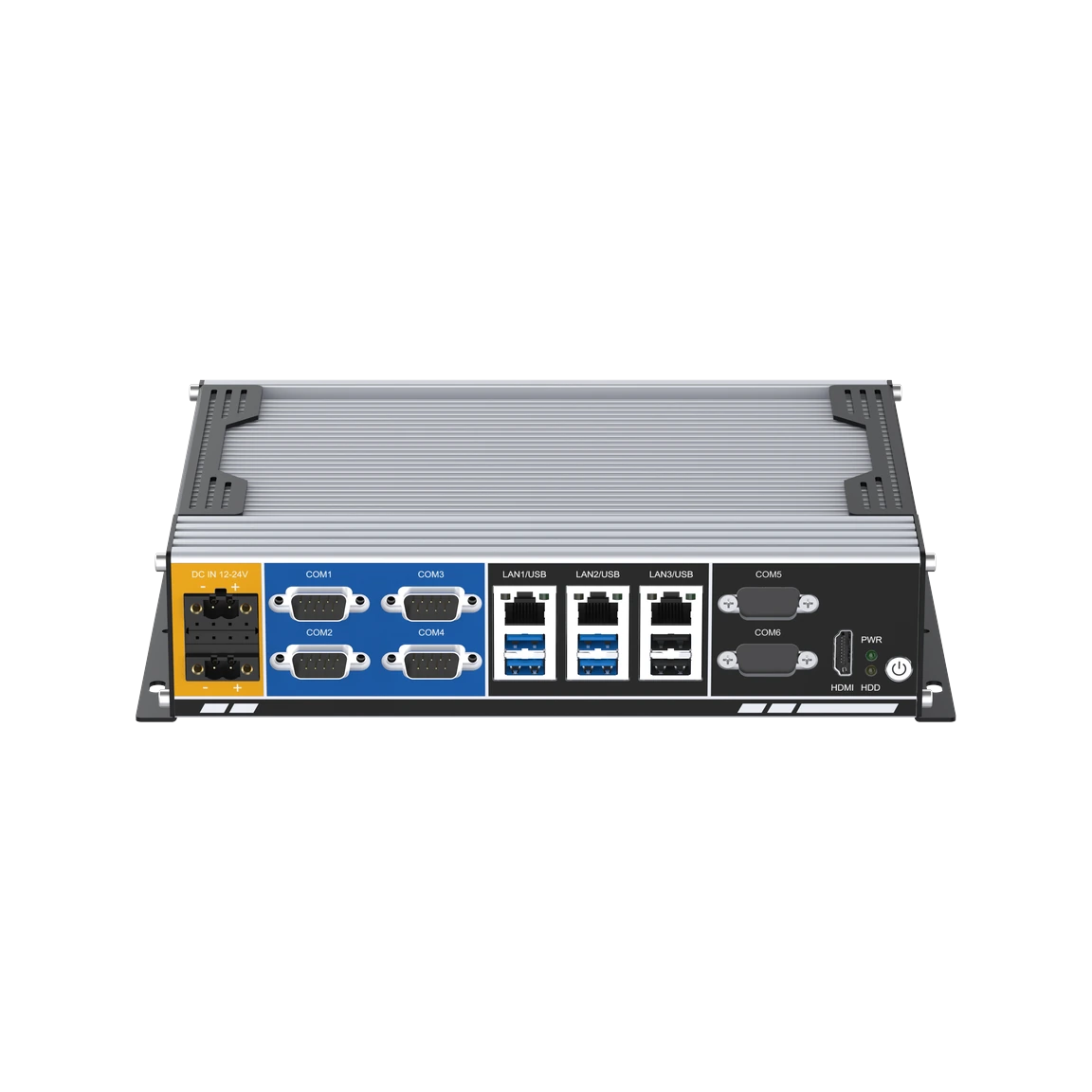

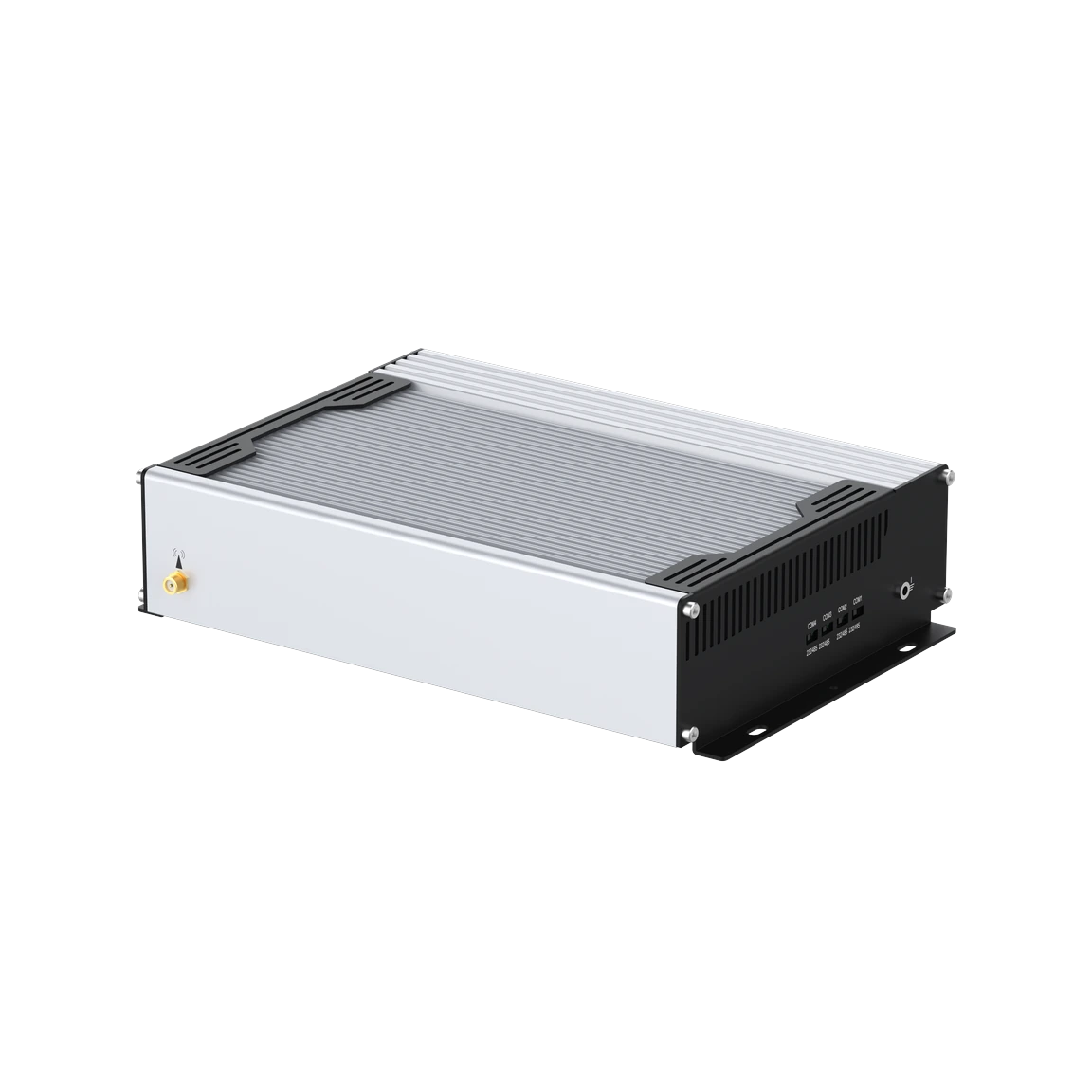

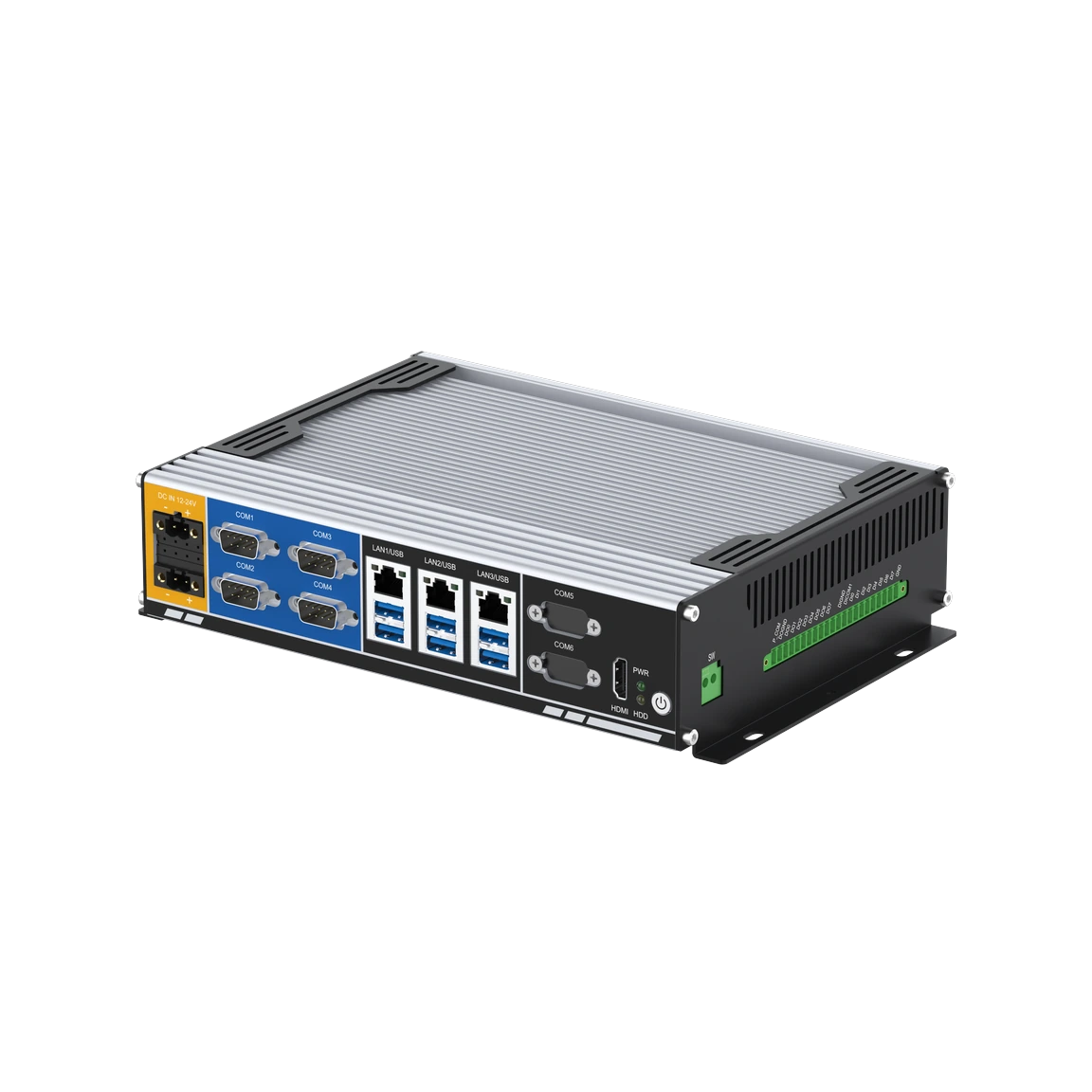

eBOX-3000H | Fanless Industrial Box PC with PCI/PCIe, Triple Display, and 6 COM
Compact fanless industrial PC supporting Intel® Core™ 6th–11th Gen processors with 3× GbE, 4× RS232/485, isolated 8DI/8DO, configurable CAN or additional serial interfaces, HDMI, M.2 NVMe + mSATA storage, and DC12–24V input.
- Supports Intel® Core™ 6th/7th/8th/9th Gen i7/i5/i3, Pentium/Celeron LGA1151 processors
- Supports Intel® Core™ 10th/11th Gen i7/i5/i3, Pentium/Celeron LGA1200 processors
- 3 x Gigabit Ethernet ports
- 4 x RS-232/RS-485 serial ports
- Configurable with 2 CAN channels or 2 additional RS-232/RS-485 ports
- 8 x optically isolated DI wet-contact inputs with 2500Vrms isolation
- 8 x DO OC gate outputs with 2000Vrms isolation
- 4 x USB3.0 and 2 x USB2.0
- HDMI output supporting up to 3840 x 2160@30Hz
- 1 x M.2 Key-M 2280 PCIe Gen3 x4 interface and 1 x mSATA storage interface
- DC12-24V input with overcurrent, overvoltage, and anti-reverse connection protection
- -20°C ~ 60°C operating temperature with SSD
Fanless Industrial Box PC Product Information
| Technical Specifications -- eBOX-3250-P/eBOX-3250-BP | ||
|---|---|---|
| Model Name | eBOX-3250-B | eBOX-3250-BP |
| System | ||
| CPU | Intel® Core™ 6/7/8/9th generation i7/i5/i3, Pentium/Celeron LGA1151 type CPU (MAX CPU TDP 35W) | Intel® Core™ 10/11th generation i7/i5/i3, Pentium/Celeron LGA1200 type CPU (MAX CPU TDP 35W) |
| BIOS | AMI UEFI 128Mbit | |
| Chipset | Intel® H110 Chipset | Intel® W580 Chipset |
| Memory | 2 x SO-DIMM Slot, Up to 32GB | |
| Storage | 1 x M.2 (M Key 2280 PCIe Gen3 x 4 Lane), 1 x mSATA | |
| USB | 4 x USB3.0, 2 x USB2.0 | |
| COM | 4 x RS-232/RS-485 (COM1-4) | |
| Expansion | Optional 2 CAN channels or 2 x RS-232/RS485 | |
| LAN | 3 x Intel GbE LAN | |
| HDMI | Maximum resolution 3840 x 2160@30Hz | |
| Watch Dogs | 1~255 levels programmable setting | |
| OS Support | ||
| OS | Windows 10, Windows 11, Linux | |
| Power | ||
| Input Voltage | DC12-24V input with overcurrent, overvoltage, and anti-reverse connection protection | |
| Chassis | ||
| Dimensions | (L)256mm x (W)173mm x (H)59.5mm | |
| Net Weight | 2Kg | |
| Environment | ||
| Work Temperature | -20ºC ~ 60ºC (Use SSD) | |
| Storage Temperature | -40ºC ~ 80ºC (Use SSD) | |
| Relative Humidity | 5~95% RH@40°C, non-condensing | |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis | |
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms | |
| EMC | CE/FCC Class A | |
| Ordering Information -- eBOX-3250-P/eBOX-3250-BP | ||
|---|---|---|
| Part Number | Product Name | Description |
| B63.32500.00.0001 | eBOX-3250-P | Quasi-system: H110 chipset / 4 x (RS232/485) / 3 LAN / 4 USB 3.0 / 2 USB 2.0 / DC 12-24V input |
| B63.3250B.00.0001 | eBOX-3250-BP | Quasi-system: W580 chipset / 4 x (RS232/485) / 3 LAN / 4 USB 3.0 / 2 USB 2.0 / DC 12-24V input |
| Options | ||
| CPU | 6100, 8500, 9700... | |
| DDR4 Memory | 4GB, 8GB, 16GB | |
| mSATA SSD | 128GB, 256GB, 512GB, 1TB... | |
| CAN | Mini PCIe: CAN_F81604 | |
