Resistive Touch Industrial Panel PCs TPC6000-AXX2-T Series

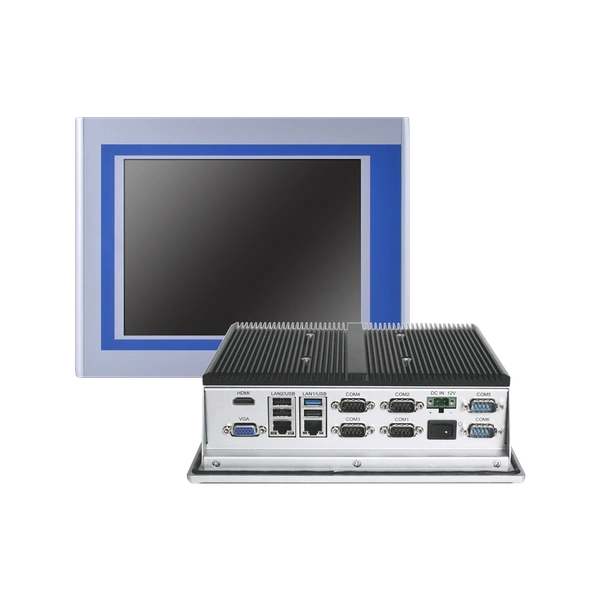

TPC6000-A082-T
8″ fanless resistive-touch industrial Panel PC with Intel® Celeron® J1900, 6 × COM, dual GbE, 5 × USB, VGA/HDMI, SATA + mSATA storage, Mini-PCIe expansion, front IP65 protection, and DC 12V input.

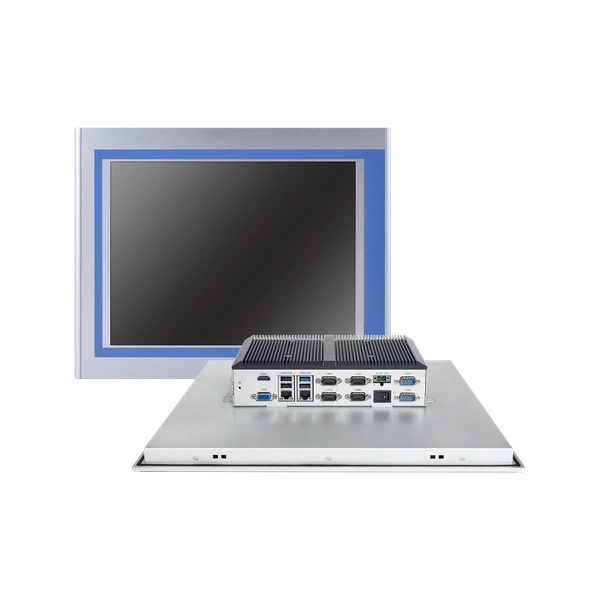

TPC6000-A152-T
15″ fanless resistive-touch industrial Panel PC with Intel® Celeron® J1900, 6 × COM, dual GbE, 5 × USB, VGA/HDMI, SATA + mSATA, Mini-PCIe expansion, front IP65 protection, and DC 12V input.

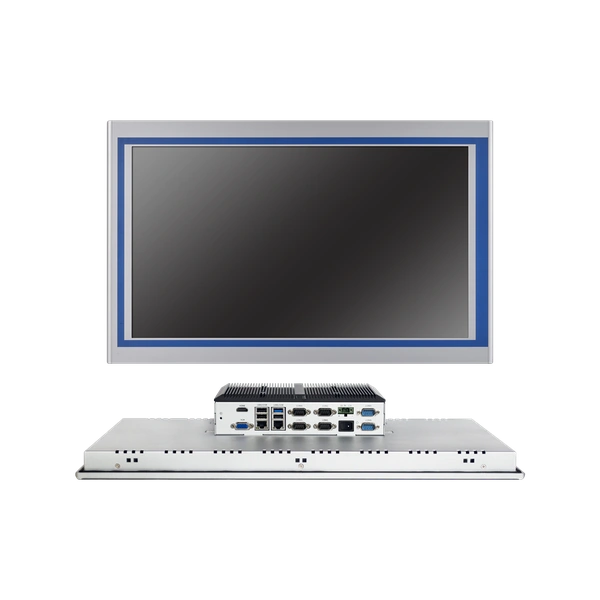

TPC6000-A2152-T
21.5″ Full HD fanless resistive-touch Panel PC with Intel® Celeron® J1900, 6 × COM, dual GbE, 5 × USB, VGA/HDMI, SATA + mSATA, Mini-PCIe, front IP65 protection, and DC 12V input.
TPC6000-AXX2-T Panel PC Series Features
The TPC6000-AXX2-T Series is a family of fanless resistive-touch industrial Panel PCs available in 8", 10.4", 12.1", 15", 17", 19", and 21.5" screen sizes with resolutions ranging from 800 × 600 to Full HD 1920 × 1080. All models are based on the Intel® Celeron® J1900 quad-core 2.0GHz processor with up to 8GB DDR3L memory, 1 × 2.5" SATA bay, and 1 × mSATA storage interface. Standard connectivity includes 1 × USB3.0, 4 × USB2.0, 6 × RS-232 ports with configurable RS-485 capability, 2 × Realtek Gigabit Ethernet ports, VGA and HDMI display outputs, and 1 × Mini-PCIe slot for optional 4G/3G or Wi-Fi expansion. The resistive touchscreen uses a USB controller interface and is well suited to industrial operator environments, while the ultra-compact fanless chassis, front-panel IP65 protection, panel/VESA mounting support, DC 12V input, 0–50°C operating temperature, and IEC 60068 vibration and shock compliance support continuous machine-level deployment.
Show More
Application Areas
The TPC6000-AXX2-T Series is suitable for factory HMI, CNC and machine tool control, packaging and bottling machinery, production and assembly lines, robotic workcells, PLC visualization, SCADA terminals, MES data-entry stations, industrial data acquisition, process monitoring, control-cabinet operator interfaces, and equipment retrofit applications. Its resistive touchscreen is particularly useful for machine environments where operators may use gloves or require reliable single-point input, while six serial ports provide extensive connectivity for PLCs, meters, barcode scanners, motion controllers, and legacy field devices. Dual Gigabit Ethernet, multiple USB ports, local SATA/mSATA storage, and Mini-PCIe wireless expansion also allow the system to combine operator HMI, machine connectivity, and local data-processing functions in one integrated industrial Panel PC.
| Model | Screen Size | Resolution | Luminance | Contrast Ratio | Dimensions (W × H × D) | Cut Out Size | Net Weight |
|---|---|---|---|---|---|---|---|
| TPC6000-A082-T | 8" | 800 × 600 | 300cd/m² | 1000:1 | 236 × 188 × 69mm | 219 × 171mm | 2.4kg |
| TPC6000-A102-T | 10.4" | 800 × 600 | 350cd/m² | 500:1 | 300.5 × 234.5 × 78.05mm | 282 × 222mm | 3.16kg |
| TPC6000-A122-TH | 12.1" | 1024 × 768 | 350cd/m² | 800:1 | 321 × 242.8 × 78mm | 304 × 230mm | 3.74kg |
| TPC6000-A152-T | 15" | 1024 × 768 | 350cd/m² | 700:1 | 373 × 297 × 82mm | 376 × 300mm | 4.83kg |
| TPC6000-A172-T | 17" | 1280 × 1024 | 250cd/m² | 1000:1 | 434 × 342 × 82mm | 411 × 325mm | 5.86kg |
| TPC6000-A192-T | 19" | 1280 × 1024 | 250cd/m² | 1000:1 | 466 × 370 × 81mm | 443 × 352mm | 6.84kg |
| TPC6000-A2152-T | 21.5" | 1920 × 1080 | 250cd/m² | 1000:1 | 550 × 342 × 88mm | 533 × 325mm | 8kg |
