Smart Logistics Industrial Panel PC for Smart Logistics Workstations
Optimize your Smart Logistics Workstation Operations
Smart logistics workstations are used across warehouse automation, parcel handling, sortation centers, packing verification, shipping and receiving, and DWS (Dimensioning, Weighing and Scanning) data collection systems. At a single workstation, operators often need to scan 1D/2D barcodes, read RFID tags, collect scale data, verify package information, print shipping labels, handle exceptions, and send data to a WMS, WES, ERP, or logistics backend system.
For equipment builders and system integrators, the main challenge is integrating multiple devices into a reliable workstation terminal that is easy to install, operate, and maintain. The NODKA TPC6000-C2154 industrial panel PC provides a practical hardware platform for smart logistics applications by combining touchscreen HMI, Intel-based computing, rich I/O connectivity, and rugged industrial design in one integrated system.
Application Overview
A logistics workstation typically connects several peripheral devices, including handheld or fixed barcode scanners, RFID readers, weighing modules, industrial label printers, PLCs, sensors, push-button boxes, stack lights or tower lights, and buzzers. The operator also needs a clear touchscreen interface to view parcel IDs, order information, SKU or product details, weight data, print status, warning messages, and workflow instructions.
In this application, the industrial panel PC serves as the central workstation terminal. It supports operator interaction, local data processing, peripheral communication, and backend system connectivity. Compared with a standard commercial computer or display, an industrial panel PC is better suited for long operating hours, frequent touch operation, flexible mounting, and continuous use in warehouse, parcel handling, and sorting environments.
Integration Challenges
Smart logistics workstations often require many device connections in a limited space. If scanners, scales, printers, PLCs, sensors, and alarm devices are handled separately, wiring becomes more complex and maintenance becomes harder. The workstation also needs stable communication across different interface types. Serial ports may be required for scales, RFID readers, or legacy devices. USB ports may be needed for handheld scanners and label printers. Multiple Ethernet ports can help separate equipment control, warehouse software, and maintenance networks. At the operator level, the display must be large and clear enough to support fast verification and reduce mistakes. This is especially important in busy warehouse, fulfillment, and parcel handling environments where workers need to process packages quickly and accurately.
Industrial Panel PC
TPC6000-C2154
Why TPC6000-C2154 Fits

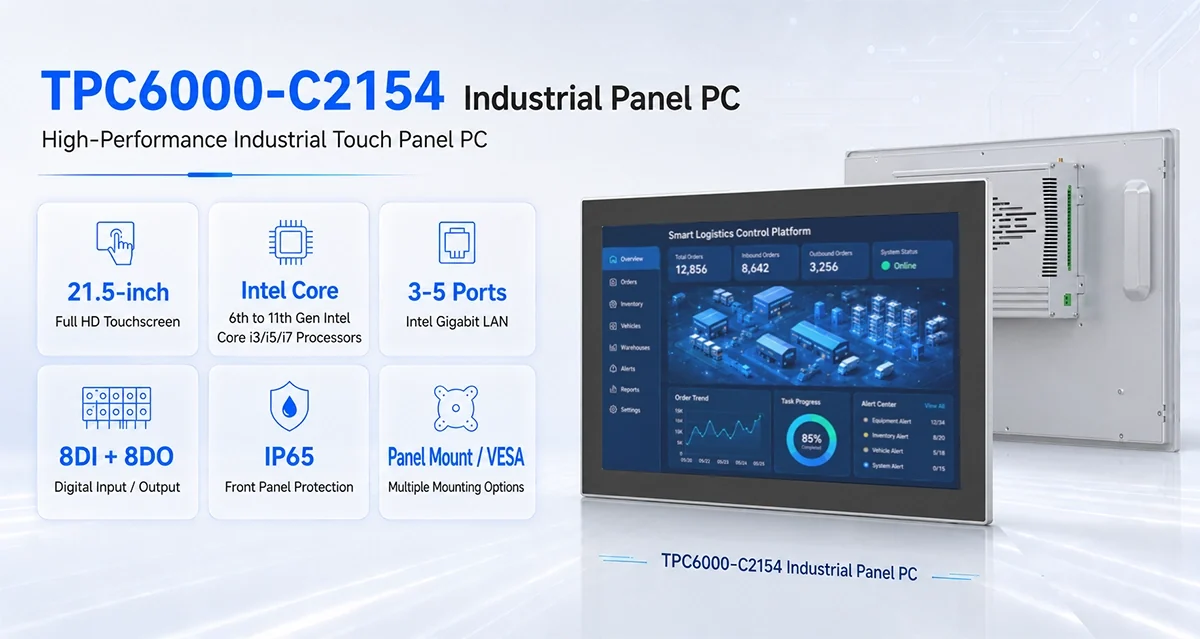

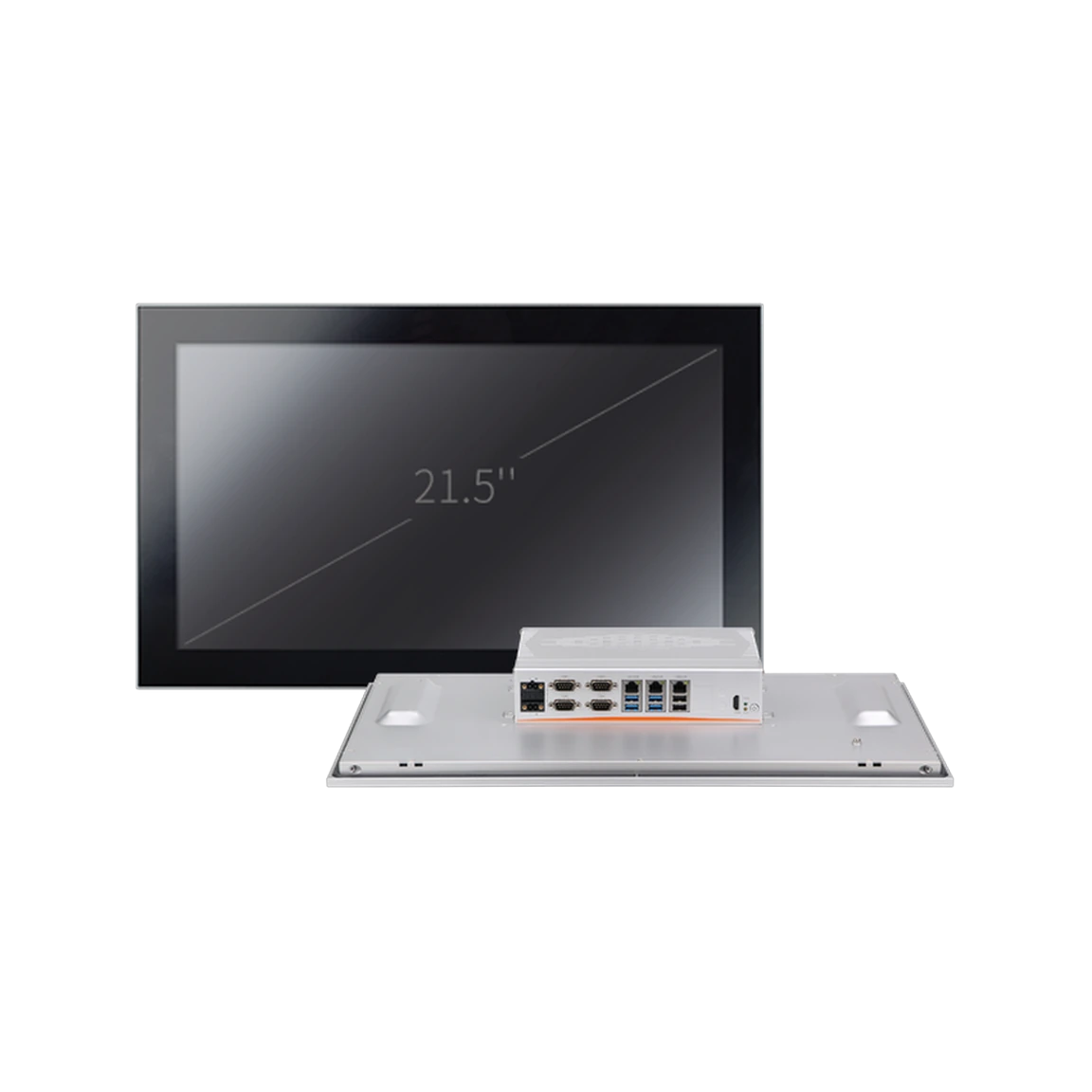

The NODKA TPC6000-C2154 supports smart logistics workstation requirements with a 21.5-inch Full HD projected capacitive multi-touch display and Intel Core i3/i5/i7 processor options. The large touchscreen provides enough space for logistics software interfaces, while the Intel platform supports HMI programs, data capture software, print management, and local data buffering.

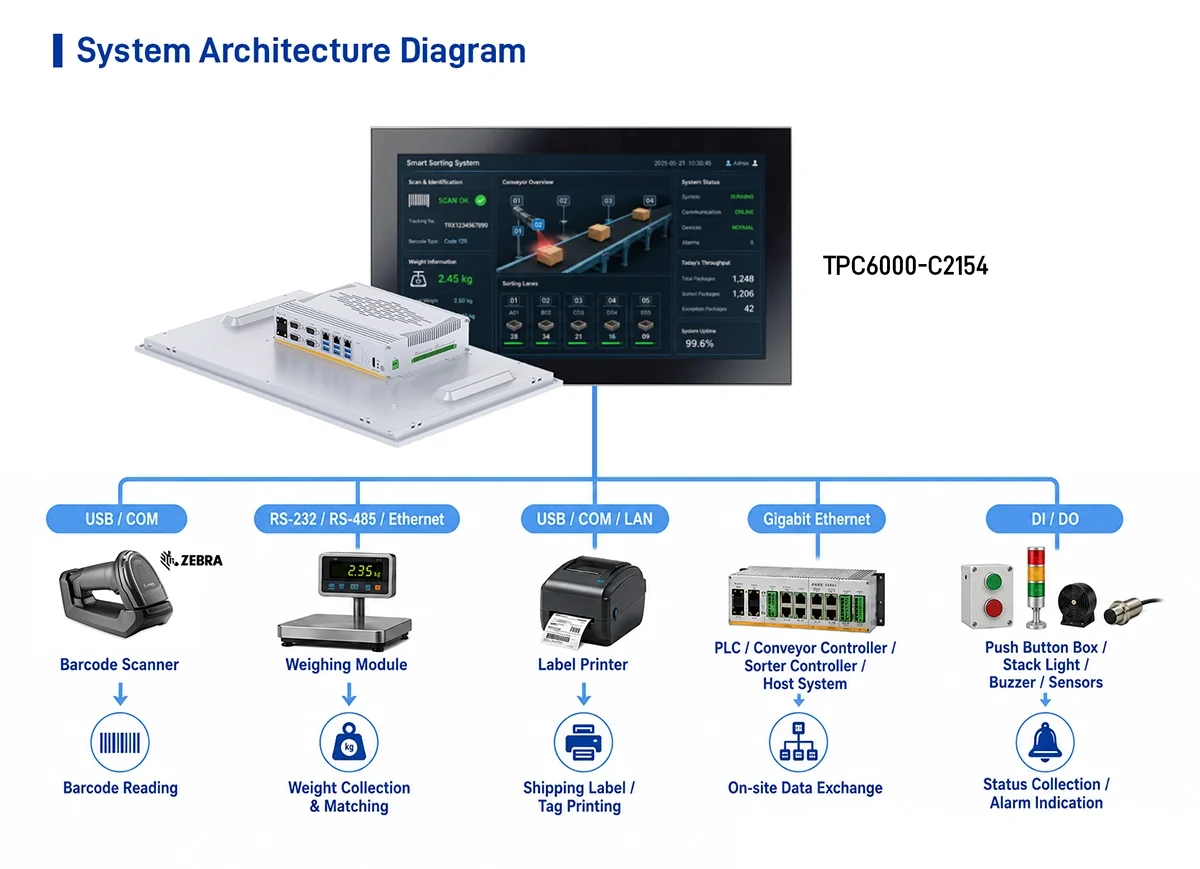

For peripheral integration, the TPC6000-C2154 can provide 3 to 5 Intel Gigabit Ethernet ports, 4 RS-232/RS-485 serial ports, 6 USB ports, and 8DI + 8DO digital I/O. These interfaces allow the panel PC to connect with common logistics workstation devices, including barcode scanners, RFID readers, weighing modules, label printers, PLCs, push buttons, sensors, stack lights, and buzzers.
In these scenarios, the panel PC helps combine operator display, device communication, and data collection into one workstation platform.
The system also supports DC 12–24V wide voltage input, power protection design, IP65 front panel protection, and both panel mount and VESA mount installation. These features make it suitable for warehouse, packing, sorting, and verification areas where stable industrial operation is required.

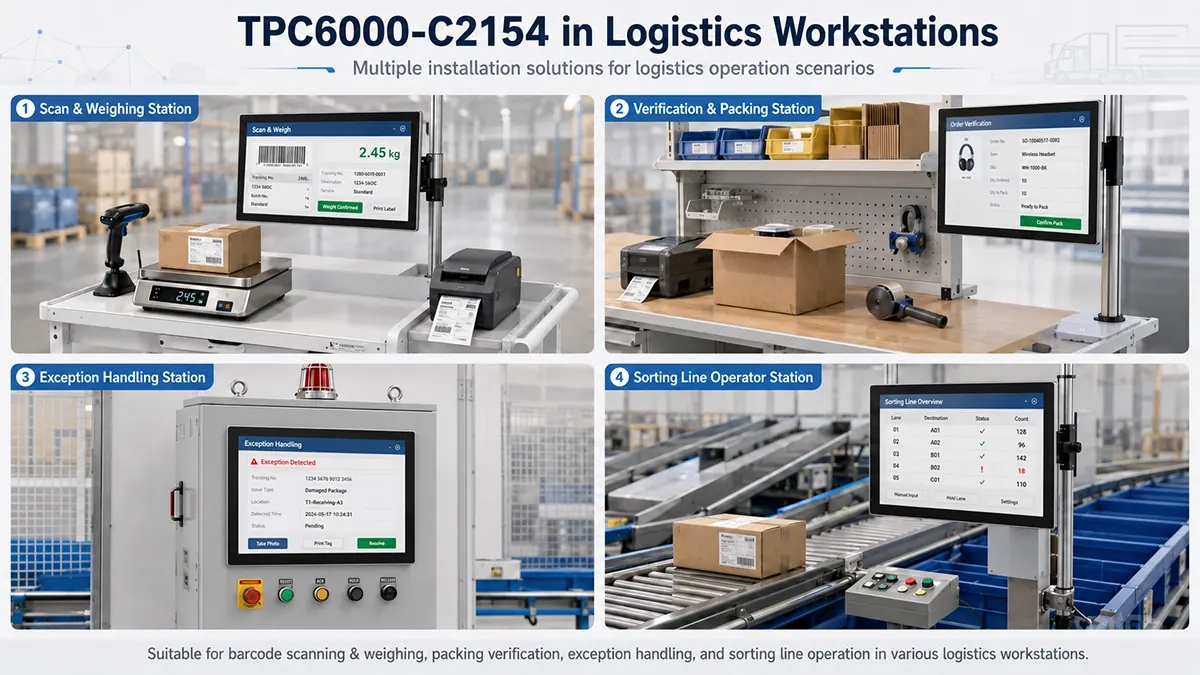

Typical Deployment Scenarios
The TPC6000-C2154 can be used in a range of smart logistics workstation applications, including:
- Scan-and-weigh workstations
- Packing verification stations
- Label printing stations
- Exception handling stations
- Inbound and outbound processing terminals
- Sortation line operator stations
- DWS information collection systems
- Warehouse automation equipment terminals
In these scenarios, the panel PC helps combine operator display, device communication, and data collection into one workstation platform.
Benefits for Equipment Builders and System Integrators
Using an integrated industrial panel PC can help reduce wiring complexity, simplify installation, and improve workstation standardization. Instead of combining a separate display, PC, I/O module, and communication gateway, equipment builders can use the TPC6000-C2154 as a centralized hardware terminal for smart logistics applications.
For system integrators, this supports easier deployment across multiple warehouse, fulfillment, or sorting sites. A consistent panel PC platform can also simplify software installation, maintenance, spare parts planning, and future system upgrades.
Smart logistics workstations need a reliable hardware platform for operator interaction, peripheral integration, data collection, and backend communication. The NODKA TPC6000-C2154 industrial panel PC supports these requirements with a large 21.5-inch touchscreen, Intel Core computing, multiple LAN, COM, USB, and DI/DO interfaces, IP65 front protection, wide voltage input, and flexible mounting options.
For logistics automation projects that require a rugged and integrated workstation terminal, the TPC6000-C2154 provides a practical industrial panel PC solution for warehouse, sortation, packing, labeling, and DWS data collection applications.
