Multi-touch Industrial Touch Monitor PANEL5000-CXXX2 Series
PANEL5000-C1042-LH
10.4″ multi-touch industrial monitor with capacitive touchscreen, 1024×768 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications
PANEL5000-C122-LH
12.1″ multi-touch industrial monitor with capacitive touchscreen, 1024×768 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications

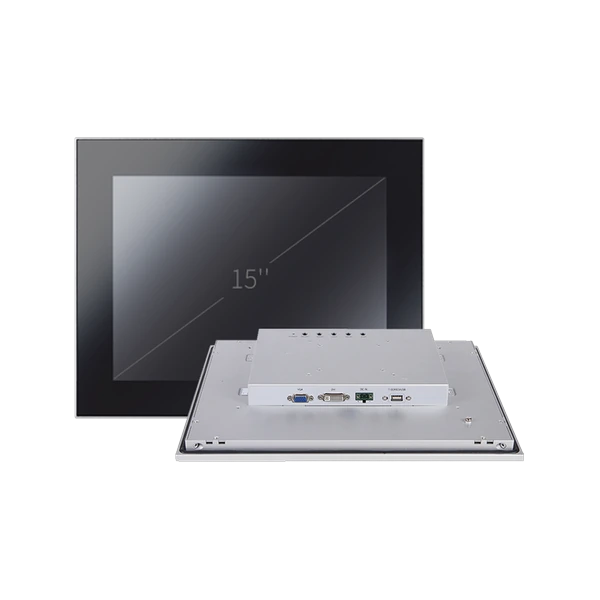

PANEL5000-C152-L
15.1″ multi-touch industrial monitor with capacitive touchscreen, 1024×768 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications

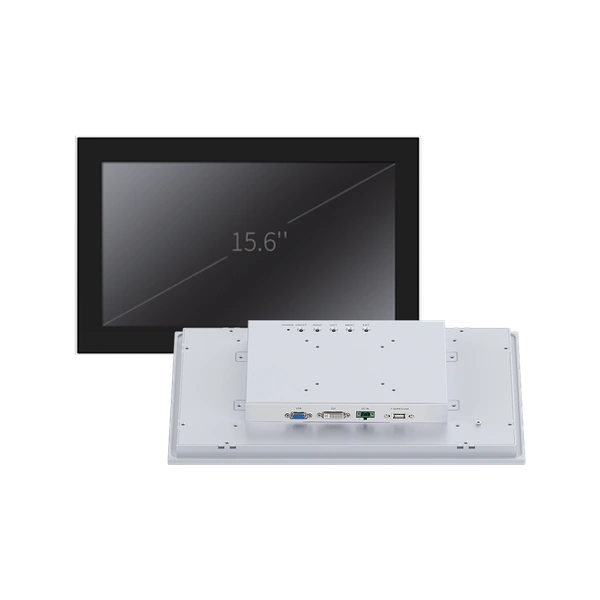

PANEL5000-C1562-L/LH
15.6″ fanless industrial touch monitors with 1366 × 768 or Full HD 1920 × 1080 display, multi-point capacitive touch, VGA/DVI inputs, USB touch, DC 12–24V input, front IP65 protection, and panel/VESA mounting.
PANEL5000-C172-L
17″ multi-touch industrial monitor with capacitive touchscreen, 1280×1024 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications
PANEL5000-C1852W-L
18.5″ multi-touch industrial monitor with capacitive touchscreen, 1366×768 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications
PANEL5000-C192-L
19″ multi-touch industrial monitor with capacitive touchscreen, 1280×1024 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications
PANEL5000-C2152W-L
21.5″ multi-touch industrial monitor with capacitive touchscreen, 1920×1080 resolution, VGA & DVI-D input, wide voltage input (DC12-24V), IP65 front panel, and multiple mounting options for industrial applications

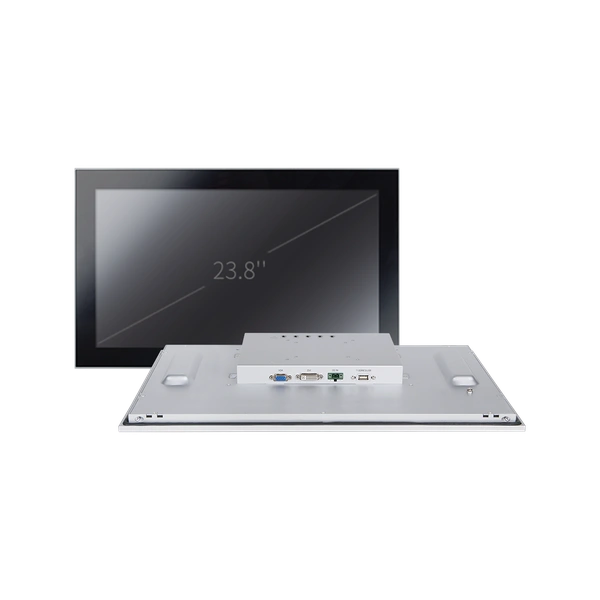

PANEL5000-C2382-L
23.8″ Full HD fanless industrial touch monitor with PCAP multi-touch, 1920 × 1080 display, VGA/DVI inputs, USB touch, DC 12–24V input, front IP65 protection, and panel/VESA mounting.
Multi-Touch Industrial Touch Monitor | PANEL5000-CXXX-L Series Features
The PANEL5000-CXXX-L Series is a family of fanless multi-touch industrial monitors available in screen sizes from 10.4" to 23.8", with resolutions including 1024 × 768, 1280 × 800, 1366 × 768, 1280 × 1024, and Full HD 1920 × 1080 depending on model. The series features multipoint capacitive touch with ≥87% transmittance and USB 2.0 touch interface, together with 1 × VGA and 1 × DVI video input for connection to industrial PCs, automation PCs, PLC-based control systems, and other external computing platforms. All models support DC 12–24V input and a maximum power consumption below 40W, while the fanless chassis uses an aluminum-magnesium alloy anodized front panel with SGCC rear cover and ground isolation protection. Front-panel IP65 protection, 100 × 100mm VESA mounting, panel mounting, 0–50°C operating temperature, IEC 60068-2-64 vibration resistance, IEC 60068-2-27 shock resistance, and CE/FCC Class A EMC compliance support continuous industrial deployment.
Show More
Application Areas
The PANEL5000-CXXX-L Series is suitable for factory HMI displays, PLC and machine control interfaces, CNC machines, laser cutting and fabrication equipment, packaging and bottling lines, automated assembly systems, robotic workcells, MES terminals, SCADA visualization stations, production dashboards, warehouse operator terminals, and equipment retrofit projects. Its broad 10.4"–23.8" size range allows machine builders and system integrators to select compact displays for localized machine control or larger Full HD screens for information-dense HMI, MES, and production monitoring applications, while VGA/DVI connectivity and USB touch simplify integration with existing and new industrial PC architectures.
| Model | Screen Size | Resolution | Luminance | Contrast Ratio | MTBF | Dimensions (W × H × D) | Cut Out Size (W × H) |
|---|---|---|---|---|---|---|---|
| PANEL5000-C1042-LH | 10.4" | 1024 × 768 | 350cd/m² | 900:1 | 30,000 hrs | 299 × 239 × 47mm | 281 × 221mm |
| PANEL5000-C122-LH | 12.1" | 1024 × 768 | 350cd/m² | 800:1 | 30,000 hrs | 321 × 247 × 47mm | 304 × 230mm |
| PANEL5000-C122W-L | 12.1" | 1280 × 800 | 400cd/m² | 1000:1 | 50,000 hrs | 328 × 239 × 47mm | 310 × 221mm |
| PANEL5000-C152-L | 15" | 1024 × 768 | 350cd/m² | 1000:1 | 50,000 hrs | 371 × 295 × 47mm | 354 × 278mm |
| PANEL5000-C1562-L | 15.6" | 1366 × 768 | 400cd/m² | 800:1 | 50,000 hrs | 405 × 258 × 47mm | 387 × 240mm |
| PANEL5000-C1562-LH | 15.6" | 1920 × 1080 | 350cd/m² | 800:1 | 50,000 hrs | 405 × 258 × 47mm | 387 × 240mm |
| PANEL5000-C172-L | 17" | 1280 × 1024 | 250cd/m² | 1000:1 | 30,000 hrs | 428 × 342 × 47mm | 411 × 325mm |
| PANEL5000-C1852W-L | 18.5" | 1366 × 768 | 250cd/m² | 1000:1 | 30,000 hrs | 480 × 304 × 47mm | 463 × 287mm |
| PANEL5000-C1852W-LH | 18.5" | 1920 × 1080 | 350cd/m² | 1000:1 | 50,000 hrs | 480 × 304 × 47mm | 463 × 287mm |
| PANEL5000-C192-L | 19" | 1280 × 1024 | 250cd/m² | 1000:1 | 30,000 hrs | 460 × 369 × 47mm | 442 × 351mm |
| PANEL5000-C2152W-L | 21.5" | 1920 × 1080 | 250cd/m² | 1000:1 | 50,000 hrs | 550 × 342 × 47mm | 533 × 325mm |
| PANEL5000-C2382-L | 23.8" | 1920 × 1080 | 250cd/m² | 3000:1 | 30,000 hrs | 603 × 372 × 47mm | 586 × 355mm |
