Join Nodka on VISION for solution and knowledge sharing

Nodka invites you for our knowledge sharing presentation on Scientific VISION Days. We expecting your visit on Booth 8D15

Click to redeem your FREE ticket! Voucher Code: 9U8GV95

What to Expect on Nodka VISION Experience?


Nodka company representative portrait for Vision trade showPresentation on Scientific VISION Days

Topic: Ultra Compact Controller Platform for Smart Logistics Sorting Systems
Time: October 8 at 10:20
Presenter: Dung Tran Nguyen
Location: Hall 8, Booth C50

The presentation includes “Smart Logistic benefits on point if matching your application”, and how Autonomous Mobile Robots AMRs for case sorters by using Nokda Ultra compact controller platform

Flexible Machine Vision System for Industrial Automation NP-6112-ECATS

NP-6112-ECATS visual controller makes the visual control system as an intelligent IO module by integrating EtherCAT slave module. It is convenient for intrgration with automation controllers.

Key Features

  • 3 Intel i210 GbE LAN controllers
  • 2 Light Control
  • 8 Isolated DI, 8 Isolated DO
  • 1 EtherCAT Slave

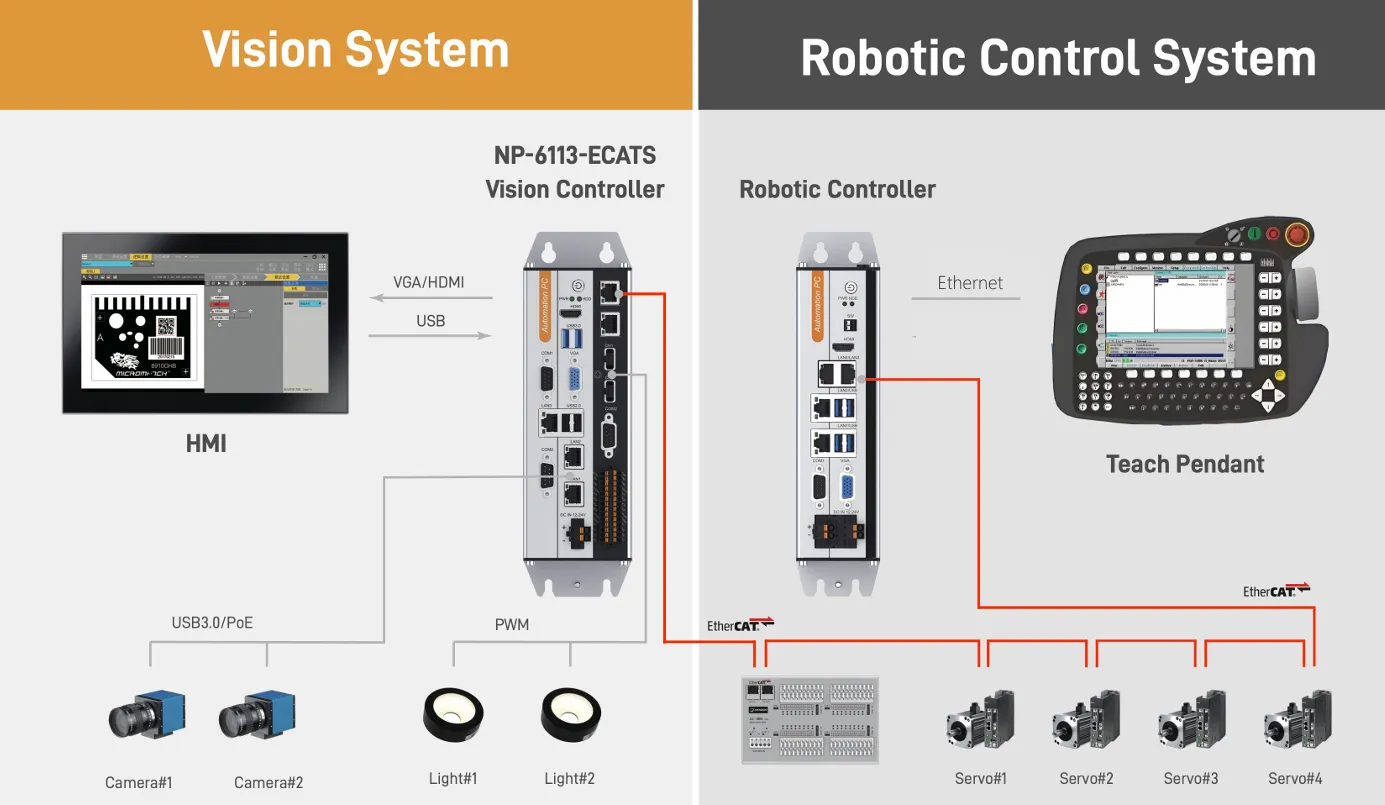

nodka flexible machine vision system with NP-6113-ECATS controller and robotic integration

Nodka Vision X guided assembly solution with panel PC and capacitor UPSVision Guided Assembly from our customer  – VISIONX

Vision-assisted operator systems in augmented reality (AR) technology are an advanced example of human-machine interaction. In this system, the operator replaces automation, communicating almost exclusively with the camera, which is responsible for checking the quality of the final product. The system guides the operator through each step of the process, monitoring the correctness and completeness of each inspection stage.

Based on fixed points in space, the camera ensures that hands or other obstructions that could distort the product assessment are not in the frame. Checking and analyzing the surroundings and the correctness of the command execution constitute the first stage of the inspection. The interface in such an application is maximally simplified to display the camera image, live analysis data, and clear messages.


Application: High-speed I/O in the machine Vision Industry

NP-61X5-H1BP series ultra compact PC equipped with a desktop high-performance processor and eich interfaces that meet the need of varios industries. 16 channels of HS isolated DI and 16 channels of HS isolated DO are extended by the PCIE and FPGA, customized formware of the FPGA makes it more flexible to meet variouis requirement. 2 channels of the encoder and 2 channels of the PWM output can be configured by the DI and DO. The encoder acquisition can support position comparision output.

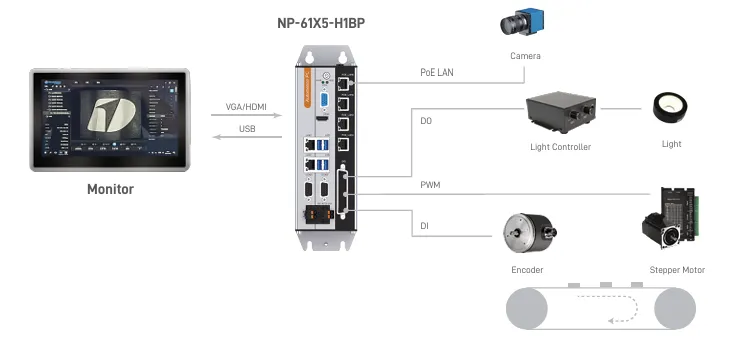

Nodka NP-61X5-H1BP high-speed I/O automation PC with camera, motor, and encoder setup
