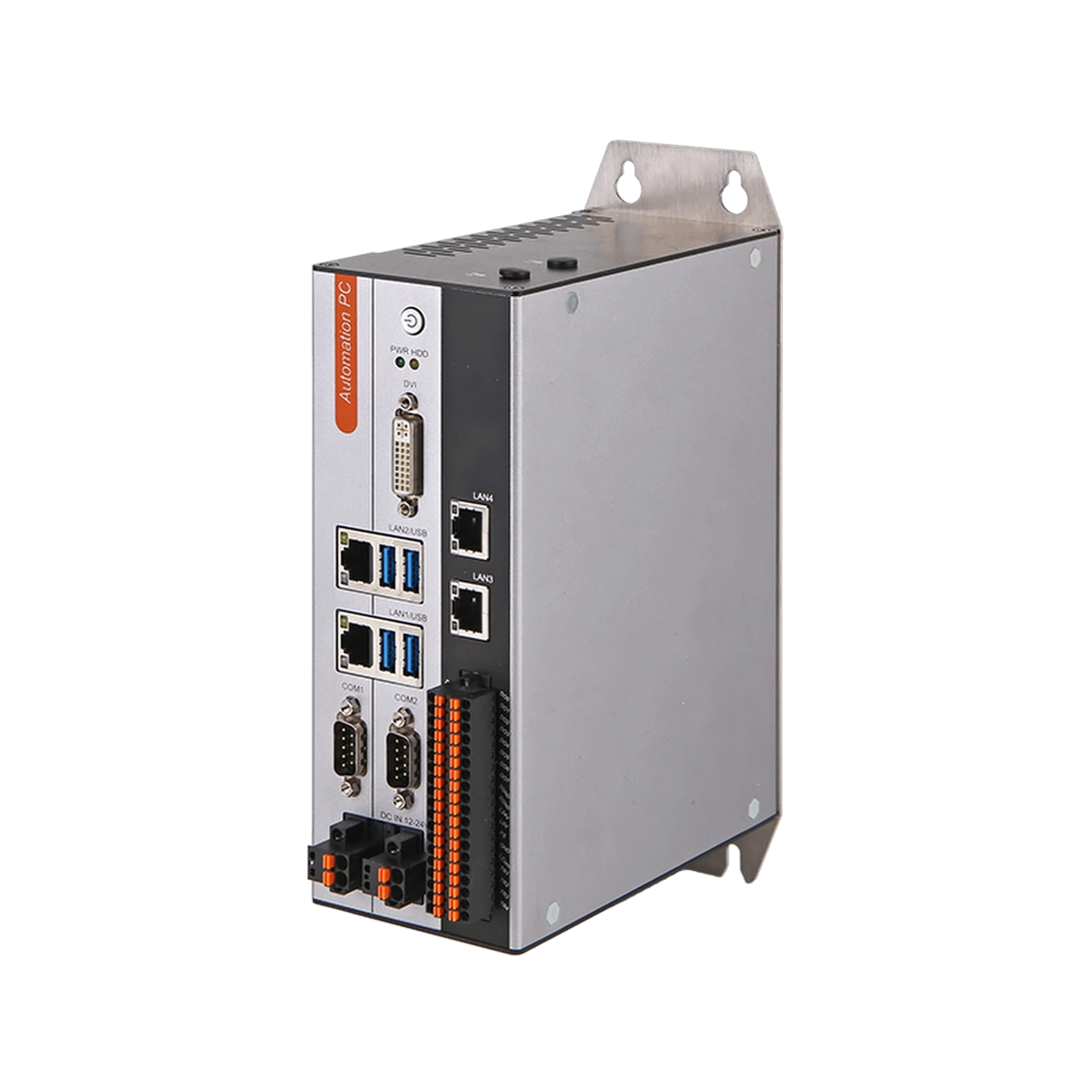

NP-6111-JH2 | Fanless Industrial PC with PoE & Digital IO
DIN-rail mount fanless PC with Intel® Celeron CPU, 2 x PoE LAN, 8DI/8DO, 4 x PWM light control, RS232/485, and wide voltage input
Features
- Compact fanless industrial PC for cabinet and DIN rail mounting
- Supports Intel® Celeron J6412, N97, or N305 processors
- 2 x Intel i210-AT PoE GbE LAN ports (max. 15W/channel)
- 2 x standard Intel GbE LAN ports for additional networking
- 8 x DI and 8 x DO with transistor output and NPN/PNP support
- 4-channel PWM light control with trigger input, 1A per channel
- 2 x COM ports (RS232/RS485 selectable) with ESD protection
- 4 x USB ports (2 x USB 3.0, 2 x USB 2.0) + onboard USB Type-A
- 1 x DVI-D display interface (1920×1080 @60Hz)
- Fanless aluminum-magnesium alloy chassis with wide 12~24V DC input
Machine Vision Fanless Automation PCs Product Information
| Technical Specifications | |||
|---|---|---|---|
| Model Name | NP-6111-JH2-J6412 | NP-6111-JH2-N97 | NP-6111-JH2-N305 |
| System | |||
| CPU | Intel(r) Celeron J6412, 2.0GHz, 4 cores/4 threads, 1.5MB L2 cache | Intel(r) Celeron N97, 2.0GHz, 4 cores, 6MB Intel(r) Smart Cache | Intel(r) Celeron N305, 2.0GHz, 8 cores/8 threads, 6MB Intel(r) Smart Cache |
| TDP | 10W | 12W | 15W |
| BIOS | AMI UEFI BIOS | ||
| Memory | 1 x SO-DIMM DDR4-3200MHz (max. 16GB) | ||
| Storage | 1 x mSATA bay | ||
| I/O Interfaces | |||
| USB | 2 x USB3.0, 2 x USB2.0 | ||
| Onboard USB | 1 x USB2.0 Type A on board for USB dongle | ||
| Serial Ports | 2 x COM (DB-9), RS232 or RS485 selectable via switch; RS485 supports auto flow control, ESD protection (RS232: ±8kV air, RS485: ±6kV contact) | ||
| Ethernet | 2 x Intel i210-AT GbE LAN controller, max. 15W per channel | ||
| PoE | 2 x Intel i210-AT GbE PoE LAN, max. 15W per channel | ||
| DI | 8 x DI, NPN/PNP | ||
| DO | 8 x DO, Transistor output, max. 0.5A per channel | ||
| Light Control | 4 x PWM light control with external trigger input, max. 1A per channel, independent power supply | ||
| Video Output | DVI-D (Supports up to 1920 x 1080 @ 60Hz) | ||
| Expansion | 1 x Full-size PCIe Mini slot with SIM card holder (USB signal) | ||
| Watchdog Timer | 1~255 levels programmable | ||
| OS Support | Windows, Ubuntu, CentOS, Debian | ||
| Power | |||
| Voltage Input | DC12~24V ±10%, with overcurrent, overvoltage, and polarity inverse protection | ||
| Power Consumption | Max. 90W | Max. 120W | |
| Chassis | |||
| Structure | Aluminum-magnesium alloy box, fanless, wall-mounted or DIN-Rail | ||
| Dimensions | (L)200mm × (W)154.5mm × (H)74.6mm | ||
| Net Weight | 2.1Kg | ||
| Environmental | |||
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) with air flow (SSD) | ||
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) with air flow (SSD) | ||
| Relative Humidity | 5~95% (Non-condensing) | ||
| Operating Vibration | 5~500Hz, 1.5Grms @with SSD, Follow IEC60068-2-64 | ||
| Operating Shock | 20G peak acceleration (11ms duration) with SSD, Follow IEC60068-2-27 | ||
| EMC | CE/FCC | ||
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Part No. | Product | Description |
| B73.61110.01.0005 | NP-6111-JH2-J6412 | CPU: J6412, RAM: NULL, mSATA: NULL, 2 x COM (RS232/RS485 selectable), 2 x LAN, 2 x USB3.0, 2 x USB2.0, DVI-D, 2 x PoE LAN, 8 x DI, 8 x DO, 4 x PWM output, DC12~24V input |
| B73.61110.01.0006 | NP-6111-JH2-N305 | CPU: N305, RAM: NULL, mSATA: NULL, 2 x COM (RS232/RS485 selectable), 2 x LAN, 2 x USB3.0, 2 x USB2.0, DVI-D, 2 x PoE LAN, 8 x DI, 8 x DO, 4 x PWM output, DC12~24V input |
| B73.61110.01.0007 | NP-6111-JH2-N97 | CPU: N97, RAM: NULL, mSATA: NULL, 2 x COM (RS232/RS485 selectable), 2 x LAN, 2 x USB3.0, 2 x USB2.0, DVI-D, 2 x PoE LAN, 8 x DI, 8 x DO, 4 x PWM output, DC12~24V input |
| Optional Items | ||
| DDR4 Memory | DDR4-3200MHz: 4GB, 8GB, 16GB | |
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | |
| WiFi Set | miniPCIe WIFI Set (7260 series), cylindrical antenna | |
| 3G/4G Module | mini PCIe: EC20, EG25, EC25 | |
| Mount Option | DIN-Rail complies with IEC 60715 (width: 35 mm, thickness: 1 mm) | |
