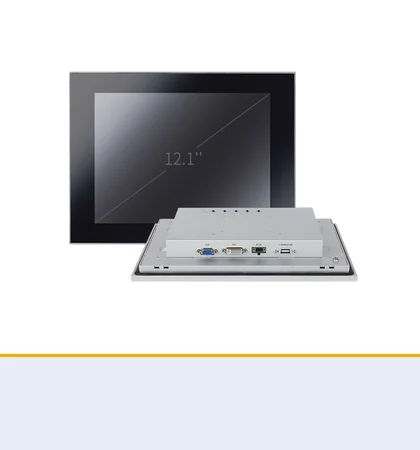

PANEL5000-C122-LH | 12.1" Multi-Touch Industrial Monitor with IP65 Front Panel
12.1″ industrial multi-touch monitor with capacitive touchscreen, VGA & DVI-D input, wide voltage support, and multiple mounting options
Features
- 12.1” TFT LCD (1024×768) with 350 cd/m² brightness
- Multi-point capacitive touch (10 points for Windows systems)
- High durability with Mohs’ 7H surface hardness
- Multiple mounting options (Embedded, Wall-mounted, Desktop, VESA)
- VGA & DVI-D signal input for high compatibility
- Wide voltage input (DC12-24V) for flexible power options
- IP65-rated front panel for dust & water resistance
- Long lifespan LED backlight with MTBF of 30,000 hours
Multi-Touch Industrial Monitor Product Information
| Technical Specifications | ||||
|---|---|---|---|---|
| Model Name | PANEL5000-C122-LH | |||
| General | ||||
| Control Buttons | Set contrast ratio and luminance via OSD at the back panel | |||
| Dimensions (WxHxD) | 321mm x 247mm x 47mm (12.64" x 9.72" x 1.85") | |||
| Drill Hole Size (WxH) | 304mm x 230mm (11.97" x 9.06") | |||
| Box Structure | Front panel: Aluminum-magnesium alloy, anodized coating Back cover: SGCC, Ground isolation protection | |||
| Mounting Options | Embedded, Wall-mounted, Desktop, and VESA mounting | |||
| Power Supply | DC 12-24V | |||
| Power Dissipation | 8W | |||
| Signal Input | VGA & DVI-D | |||
| Net Weight | 2.95kg | |||
| LCD | ||||
| LCD Size | 12.1" SVGA TFT | |||
| Resolution | 1024x768 | |||
| Colors | 16.7M | |||
| Active Area (WxH) | 245.76mm x 184.32mm | |||
| Backlight | LED | |||
| MTBF | 30,000 hrs | |||
| Pixel Pitch (HxV) | 0.24 x 0.24 mm | |||
| Luminance | 350 cd/m² | |||
| Contrast Ratio | 800:1 | |||
| Viewing Angle | (L) 80 / (R) 80 / (T) 80 / (B) 80 | |||
| Touchscreen | ||||
| Type | Multi-point Capacitive Touch Screen | |||
| Transmittance | 87% | |||
| Controller Interface | USB | |||
| Driver Support | Windows XP, Windows 7, Windows 8, Windows 10, Linux | |||
| Multi-touch | 10 points (Windows system) | |||
| Surface Hardness | Mohs' 7H | |||
| Environmental | ||||
| Operating Temperature | -20~60°C (-4~140°F) | |||
| Storage Temperature | -30~80°c (-22~176°F) | |||
| Relative Humidity | 5~95% (Non-condensing) | |||
| Vibration Resistance | 1.5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis | |||
| Shock Resistance | 10G IEC 60068-2-64, Half-sine wave, 11ms | |||
| EMC | CE/FCC Class A | |||
| Waterproof Rating | IP65 (Front Panel) | |||
| Accessories | ||||
| Included Cables | VGA Cable (1.8M) USB Cable (1.8M) Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |||
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) DVI Cable (1.8M/3M/5M) Chinese Standard Power Line (1.8M / 3M / 5M) | |||
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Model Name | Description | |
| PANEL5000-C122-LH | 12.1" Capacitive Touchscreen Monitor, 1024×768 resolution, Multi-point capacitive touch, VGA & DVI-D input, Wide voltage input (DC12-24V), IP65 front panel, Multiple mounting options (Embedded, Wall-mounted, Desktop, VESA). | |
| Options | ||
|---|---|---|
| Display Size | 12.1" TFT LCD (1024x768) | |
| Touch Technology | Multi-point Capacitive Touch (10 points for Windows) | |
| Signal Input | VGA & DVI-D | |
| Mounting Options | Embedded, Wall-mounted, Desktop, and VESA mounting | |
| Power Input | DC 12-24V | |
| Accessories Included | VGA Cable (1.8M), USB Cable (1.8M), Adapter (12V/3.33A, 40W 2-pin Phoenix terminal) | |
| Optional Accessories | VGA Cable (3M / 5M) USB Cable (3M / 5M) DVI Cable (1.8M/3M/5M) Chinese Standard Power Line (1.8M / 3M / 5M) | |
