PANEL5000-C152-L-A | 15" Remote Industrial Touch Monitor
15″ XGA capacitive industrial remote display with 1024 × 768 resolution, ND Link RJ45 input, dual USB 2.0 outputs, eLink-200 remote transmission architecture, and DC 12–24V power input.
- 15" XGA TFT display with 1024 × 768 resolution
- 400cd/m² luminance and 800:1 contrast ratio
- 85° / 85° / 85° / 85° viewing angles
- Capacitive touch screen for industrial HMI operation

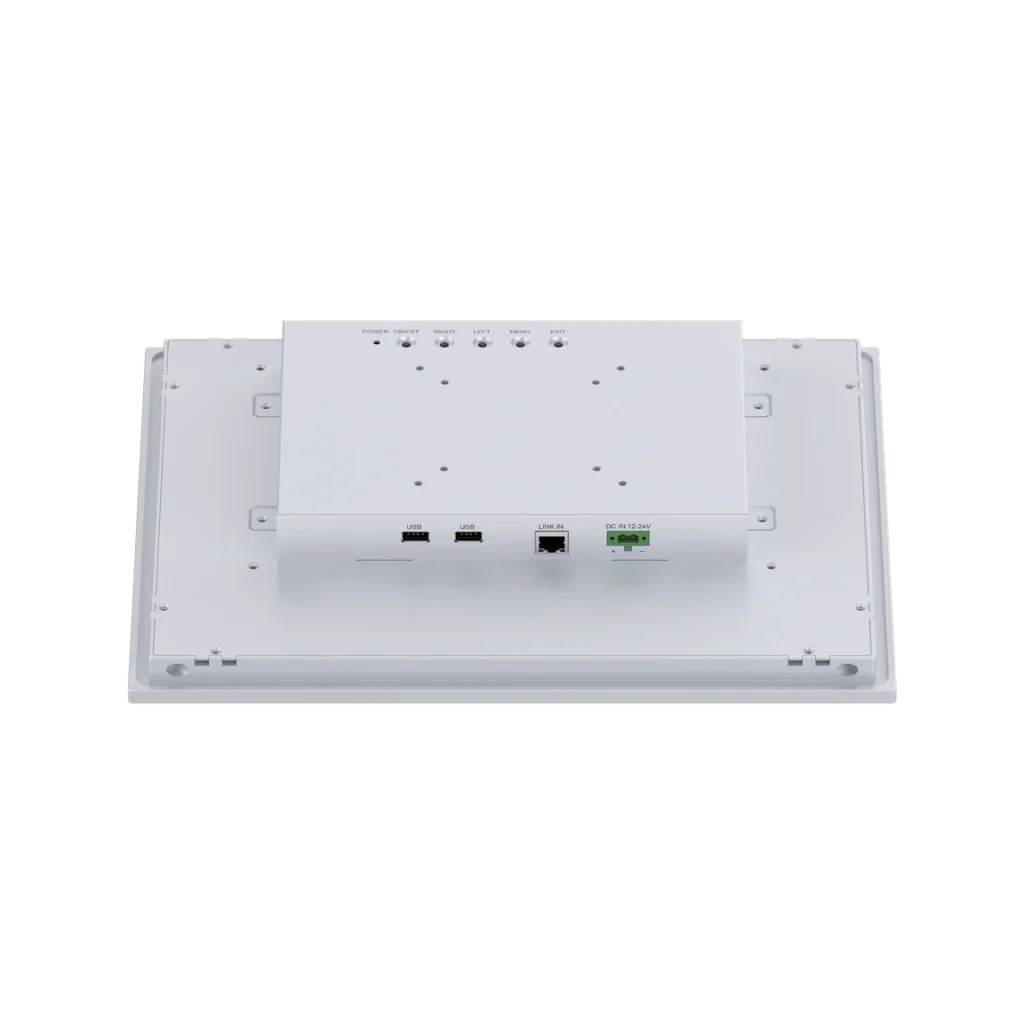

- 1 × RJ45 ND Link signal input
- 2 × USB2.0 Type-A outputs
- Network cable transmits display and USB signals up to 100 meters
- Integrated receiver for use with the eLink-200 remote transmitter
- DC 12–24V input with reverse polarity, overvoltage, and overcurrent protection
- Maximum power consumption of 35W
- Aluminium shell with 47mm chassis depth
- Embedded installation for industrial machine panels
- 0ºC to 50ºC operating temperature
- CE/FCC Class B EMC compliance
Capacitive Touch Industrial Monitor Product Information
| Technical Specifications | |
|---|---|
| Product Name | PANEL5000-C152-L-A |
| IO Port | |
| INPUT | RJ45 |
| OUTPUT | 2 × USB2.0 (Type A) |
| Display | |
| LCD Type | 15" XGA TFT |
| Resolution | 1024 × 768 |
| Active Area (W × H) | 304.13mm × 228.10mm |
| MTBF (hour) | 30000hrs |
| Luminance | 400cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | (L) 85 / (R) 85 / (T) 85 / (B) 85 |
| Touch Panel | |
| Classification | Capacitive Touch Screen |
| OS | |
| Microsoft Windows | Windows 7, Windows 10 IoT, Ubuntu, CentOS |
| Power | |
| Input Voltage | DC 12-24V, support reverse polarity protection, overvoltage protection, overcurrent protection |
| Power Consumption | Max Power Consumption 35 Watts |
| Mechanical Parameter | |
| Structure | Aluminium shell |
| Dimension | 371mm × 295mm × 47mm |
| Cut Out Size | 354mm × 278mm |
| Weight | 3.4kg |
| Environment | |
| Operating Temperature | 0ºC ~ 50ºC |
| Storage Temperature | -20ºC ~ 80ºC |
| Relative Humidity | 5~95% @40ºC (Non-condensation) |
| Vibration | SSD applied: Operating Random Vibration Test 5~500Hz, 1.5Grms, follow IEC 60068-2-64 |
| Shock | SSD applied: Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| EMC | CE/FCC Class B |
| Ordering Information | |
|---|---|
| Product Name | Description |
| PANEL5000-C152-L-A | Remote Display, 15", 1024 × 768, output USB2.0, DC in 12V-24V |
| Optional Components | |
| Option Item | Description |
| USB Cable | USB2.0 Type-A to Type-B cable, optional 1.5m / 2m / 3m / 5m |
| HDMI Cable | DVI-D to HDMI cable, optional 1.5m / 2m / 3m / 5m |
| DVI Cable | DVI-D to DVI-D cable, optional 1.5m / 2m / 3m / 5m |
| Remote TX BOX | link-200 |
| Other Options | Not specified |
