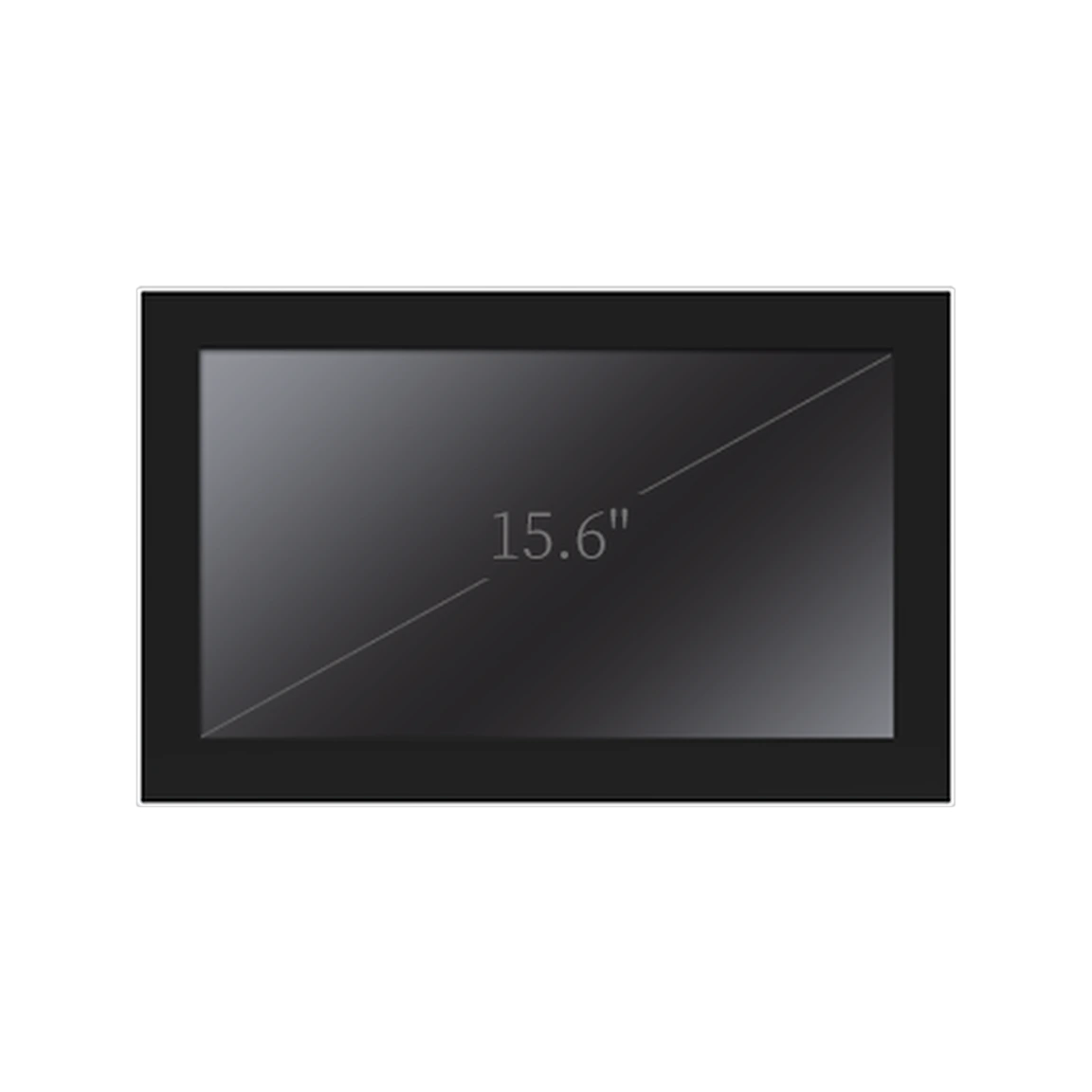

PANEL5000-C1562-L-A / LH-A | 15.6" Remote Industrial Touch Monitor
15.6″ capacitive industrial remote display with 1366 × 768 or 1920 × 1080 resolution, ND Link RJ45 input, 2 × USB 2.0 outputs, eLink-200 remote transmission support, and DC 12–24V power.
- 15.6" industrial remote display available in 1366 × 768 and Full HD 1920 × 1080 resolutions
- Capacitive touch screen for industrial HMI applications

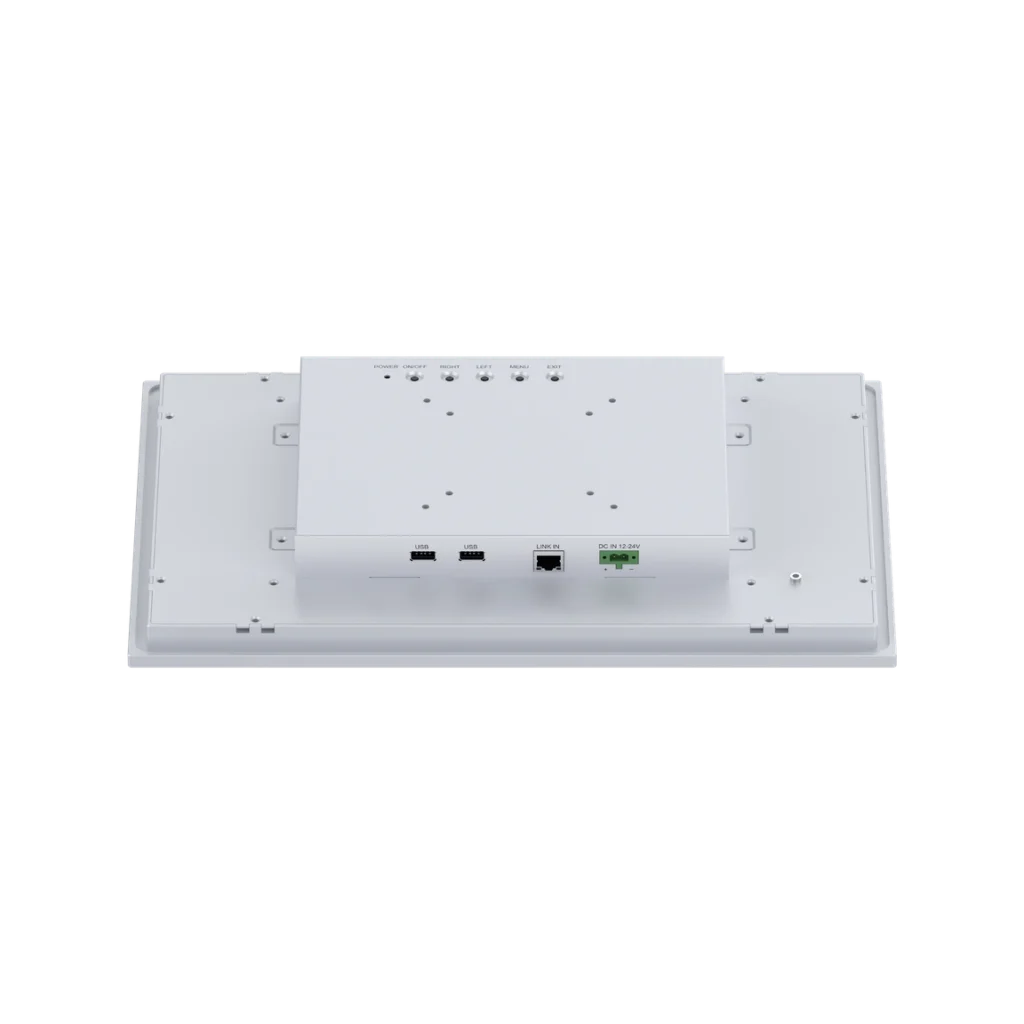

- 1 × RJ45 ND Link signal input
- 2 × USB2.0 Type-A outputs
- Display and USB signals can be transmitted up to 100 meters over network cable
- Integrated receiver for use with the eLink-200 remote transmitter
- eLink-200 remote transmitter supports output up to 2K resolution
- DC 12–24V power input with reverse polarity, overvoltage, and overcurrent protection
- Maximum power consumption of 35W
- Aluminium shell with 47mm chassis depth
- Embedded installation for machine-panel integration
- 0ºC to 50ºC operating temperature
- CE/FCC Class B EMC compliance
Capacitive Touch Industrial Monitor Product Information
| Technical Specifications | ||
|---|---|---|
| Product Name | PANEL5000-C1562-L-A | PANEL5000-C1562-LH-A |
| IO Port | ||
| INPUT | RJ45 | |
| OUTPUT | 2 × USB2.0 (Type A) | |
| Display | ||
| LCD Type | 15.6" HD TFT | 15.6" FHD TFT |
| Resolution | 1366 × 768 | 1920 × 1080 |
| Active Area (W × H) | 344.232mm × 193.536mm | 344.16mm × 193.59mm |
| MTBF (hour) | 50000hrs | |
| Luminance | 400cd/m² | 350cd/m² |
| Contrast Ratio | 800:1 | |
| Viewing Angle | (L) 85 / (R) 85 / (T) 50 / (B) 80 | (L) 89 / (R) 89 / (T) 89 / (B) 89 |
| Touch Panel | ||
| Classification | Capacitive Touch Screen | |
| OS | ||
| Microsoft Windows | Windows 7, Windows 10 IoT, Ubuntu, CentOS | |
| Power | ||
| Input Voltage | DC 12-24V, support reverse polarity protection, overvoltage protection, overcurrent protection | |
| Power Consumption | Max Power Consumption 35 Watts | |
| Mechanical Parameter | ||
| Structure | Aluminium shell | |
| Dimension | 405mm × 258mm × 47mm | |
| Cut Out Size | 387mm × 240mm | |
| Weight | 4.4kg | |
| Environment | ||
| Operating Temperature | 0ºC ~ 50ºC | |
| Storage Temperature | -20ºC ~ 80ºC | |
| Relative Humidity | 5~95% @40ºC (Non-condensation) | |
| Vibration | SSD applied: Operating Random Vibration Test 5~500Hz, 1.5Grms, follow IEC 60068-2-64 | |
| Shock | SSD applied: Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | |
| EMC | CE/FCC Class B | |
Click the link below to download datasheets or drivers:
| Ordering Information | |
|---|---|
| Product Name | Description |
| PANEL5000-C1562-L-A | Remote Display, 15.6", 1366 × 768, output USB2.0, DC in 12V-24V |
| PANEL5000-C1562-LH-A | Remote Display, 15.6", 1920 × 1080, output USB2.0, DC in 12V-24V |
| Optional Components | |
| Option Item | Description |
| USB Cable | USB2.0 Type-A to Type-B cable, optional 1.5m / 2m / 3m / 5m |
| HDMI Cable | DVI-D to HDMI cable, optional 1.5m / 2m / 3m / 5m |
| DVI Cable | DVI-D to DVI-D cable, optional 1.5m / 2m / 3m / 5m |
| Remote TX BOX | link-200 |
| Other Options | Not specified |
