Multi-touch Industrial Touch Monitor PANEL5000-CXXX2-L-A Series
PANEL5000-C122-LH-A
12.1″ SVGA industrial touch monitor with projected capacitive multi-touch, NDLink HDBaseT (RJ45) input, 2 × USB 2.0 output, DC 12–24V power input, IP65 front protection, and panel, wall, desktop, or VESA mounting.

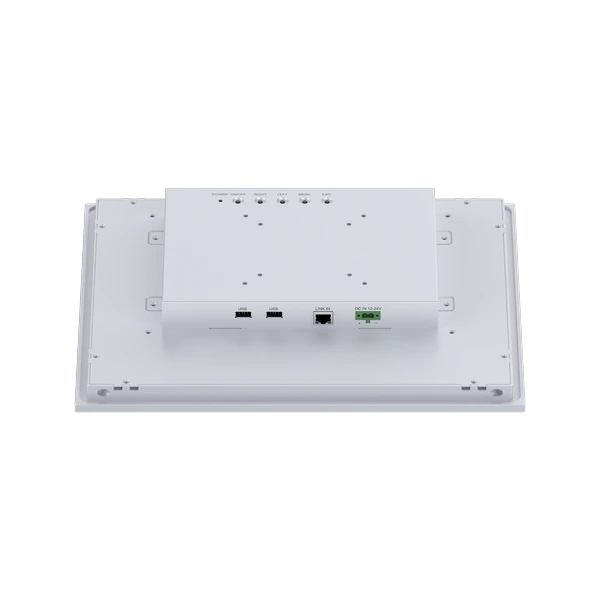

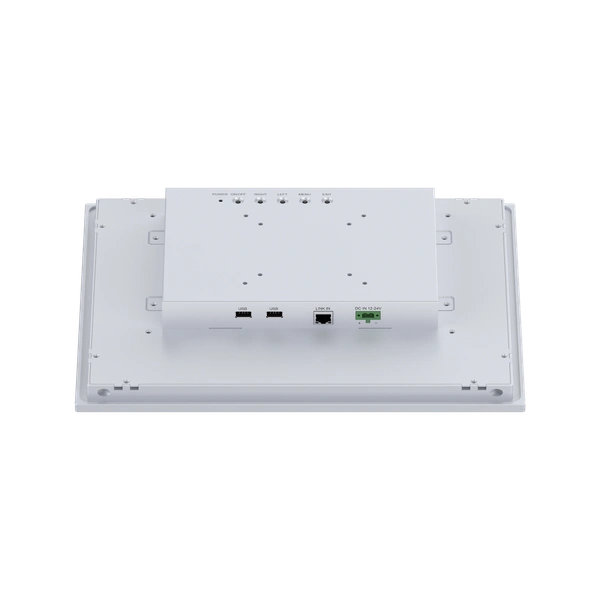

PANEL5000-C152-A
15″ XGA industrial touch monitor with projected capacitive multi-touch, NDLink HDBaseT (RJ45) input, 2 × USB 2.0 output, DC 12–24V input, IP65 front protection, and panel, wall, desktop, or VESA mounting.

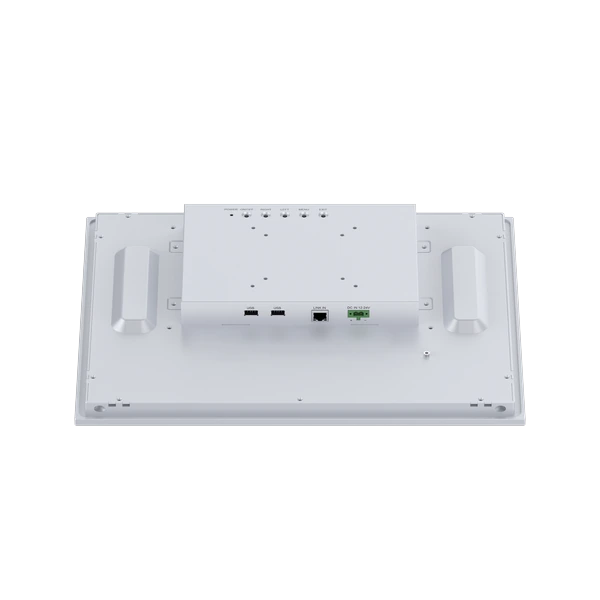

PANEL5000-C172-L-A
17″ SXGA industrial touch monitor with projected capacitive multi-touch, ND Link (RJ45) input, 2 × USB 2.0 output, DC 12–24V input, IP65 front protection, and panel, wall, desktop, or VESA mounting.

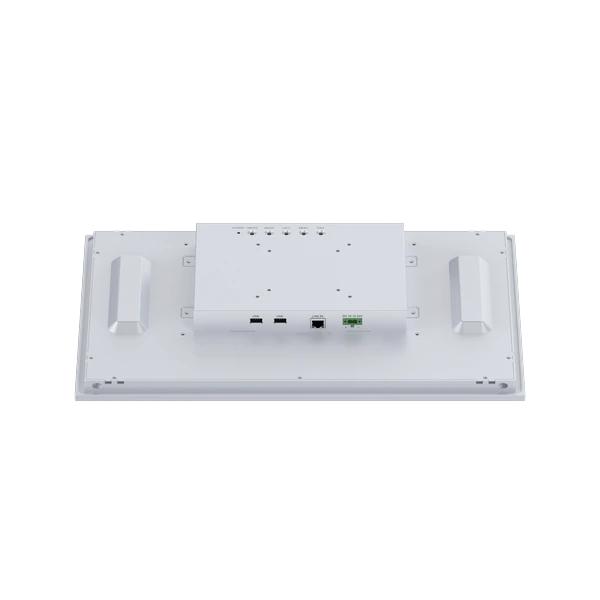

PANEL5000-C1852W-L-A
18.5″ HD industrial touch monitor with projected capacitive multi-touch, NDLink HDBaseT (RJ45) input, 2 × USB 2.0 output, DC 12–24V input, IP65 front protection, and panel, wall, desktop, or VESA mounting.

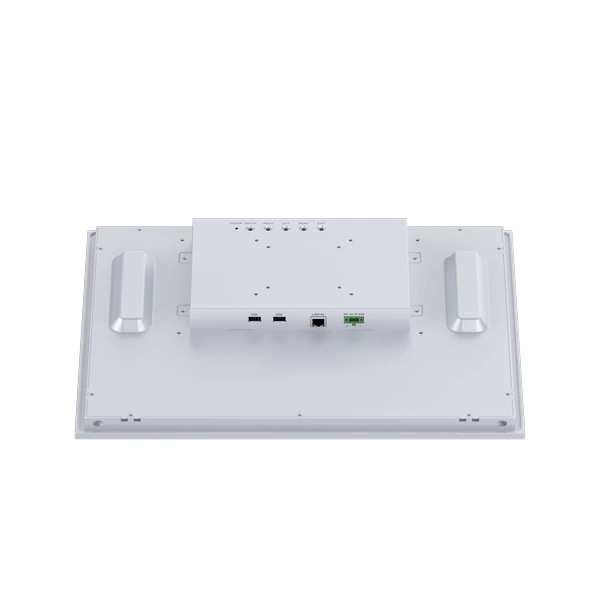

PANEL5000-C192-L-A
19″ SXGA industrial touch monitor with projected capacitive multi-touch, NDLink HDBaseT (RJ45) input, 2 × USB 2.0 output, DC 12–24V input, IP65 front protection, and panel, wall, desktop, or VESA mounting.

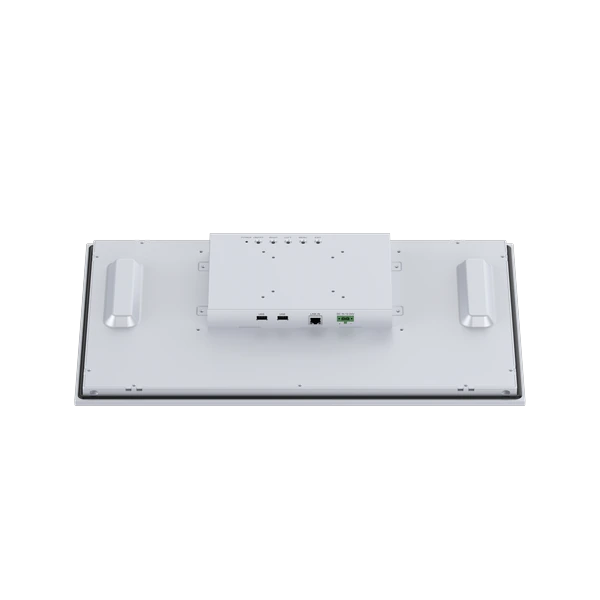

PANEL5000-C2152-L-A
21.5″ Full HD industrial touch monitor with projected capacitive multi-touch, NDLink HDBaseT (RJ45) input, 2 × USB 2.0 output, DC 12–24V input, IP65 front protection, and panel, wall, desktop, or VESA mounting.
Multi-touch Industrial Touch Monitor PANEL5000-CXXX2-L-A Series Features
The PANEL5000-CXXX2-L-A series is a family of industrial touch monitors with 12.1", 15", 17", 19", 18.5", and 21.5" TFT display options and projected capacitive multi-touch operation. Across the series, the monitors use NDLink HDBaseT (RJ45) signal remote display input, provide 2 x USB 2.0 output, support DC 12-24V power input, and use an aluminum-magnesium alloy front panel with anodized coating. Installation options include panel mount, wall mount, desktop placement, and VESA mounting, while the front panel is rated IP65. The series supports Windows XP, Windows 7, Windows 8, Windows 10, and Linux touch drivers, operates from 0 to 50°C, and is designed for remote monitor deployment using CAT6/CAT6e-class shielded cabling with an integrated ND Link receiver architecture for long-distance signal transmission up to 100 meters between the display and the transmitter box.
Show More
Application Areas
The PANEL5000-CXXX2-L-A series is suitable for industrial HMI display applications such as factory operator panels, packaging and assembly line stations, MES terminals, warehouse operator terminals, CNC machine interfaces, and large-form-factor machinery displays. Its PCAP multi-touch interface, IP65 front protection, and panel or VESA mounting flexibility fit machine-level visualization and operator control, while NDLink long-distance connectivity supports remote monitor installation on extended production lines or large equipment with the industrial PC placed in a centralized control cabinet.
| Model | Screen Size | Resolution | Brightness | Contrast Ratio | Power Dissipation |
|---|---|---|---|---|---|
| PANEL5000-C122-LH-A | 12.1" SVGA TFT | 1024 x 768 | 300 cd/m2 | 800:1 | 10W |
| PANEL5000-C152-LH-A | 15" XGA TFT | 1024 x 768 | 350 cd/m2 | 1000:1 | 12W |
| PANEL5000-C172-L-A | 17" SXGA TFT | 1280 x 1024 | 250 cd/m2 | 1000:1 | 14W |
| PANEL5000-C192-L-A | 19" SXGA TFT | 1280 x 1024 | 250 cd/m2 | 1000:1 | 20W |
| PANEL5000-C1852W-L-A | 18.5" HD TFT | 1366 x 768 | 250 cd/m2 | 1000:1 | 15W |
| PANEL5000-C2152-L-A | 21.5" Full HD TFT | 1920 x 1080 | 250 cd/m2 | 3000:1 | 22W |
