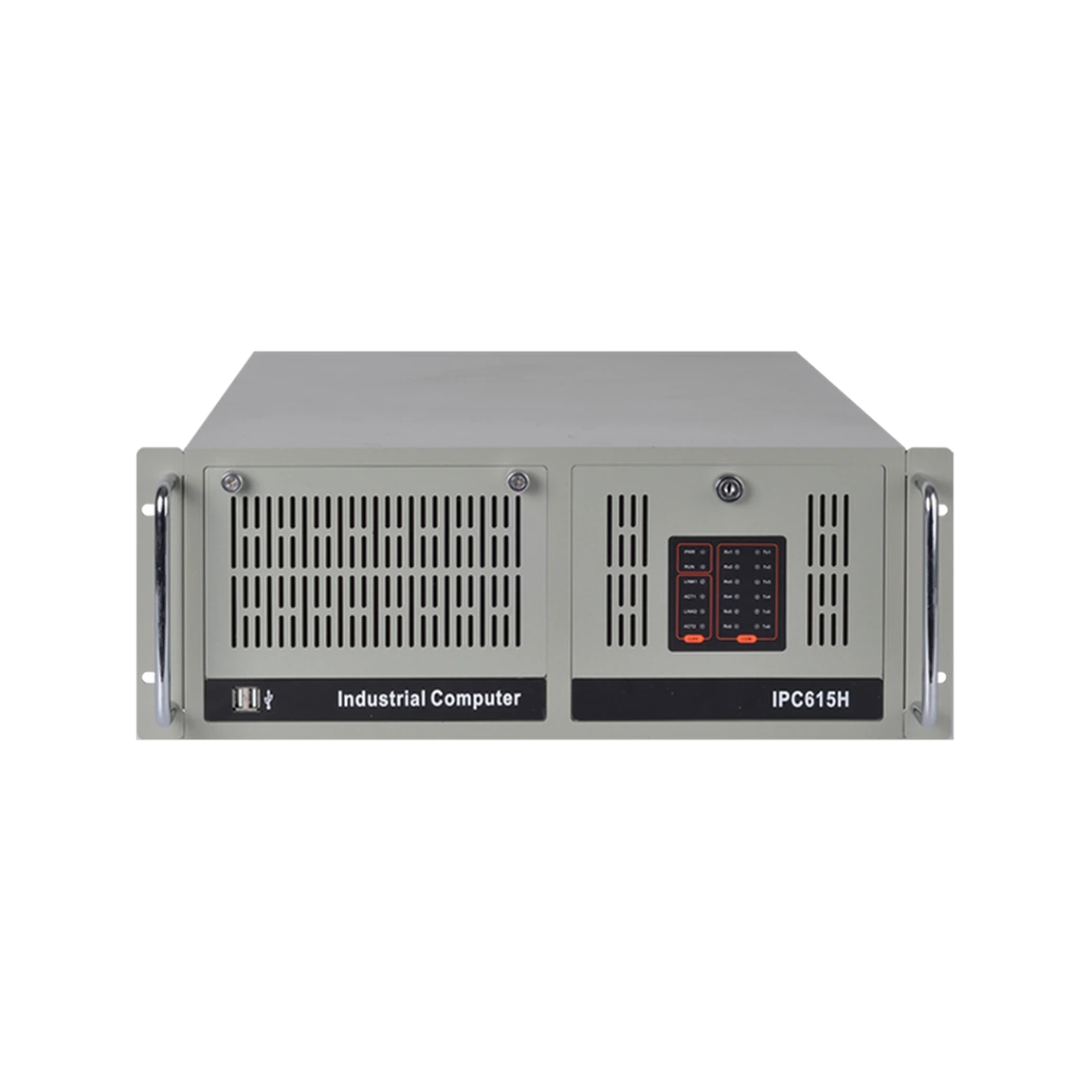

IPC-615H-C236 | 4U Rackmount Industrial PC with PCI/PCIe Expansion & Triple Display
Intel C236 chipset rackmount PC with support for 6th–9th Gen CPUs, PCIe/PCI slots, triple display, M.2 and SATA RAID storage, and 6 COM port connectivity
Features
- 4U rackmount industrial PC with full-steel chassis
- Supports Intel(r) 6th-9th Gen Core / Pentium / Celeron processors (LGA1151)
- Expansion: 2 x PCIe x16 (x8 signal), 2 x PCIe x4, 1 x PCIe x4 (x1), 2 x PCI
- Triple independent display: HDMI, DVI-D, VGA
- 6 COM ports: 1 x RS232/422/485, 5 x RS232
- 8 USB ports: 4 x USB 3.0 + 4 x USB 2.0
- Dual Intel Gigabit LAN for high-speed industrial networking
- Storage: 1 x M.2 SSD, up to 3 x 2.5″/3.5″ HDD or 1 x 5.25″ optical + 2 x HDD
- Supports RAID 0/1/5 via Intel C236 chipset
- Built-in AC 220V power supply (400W or higher configurable)
- Operating temperature: 0°C to 45°C (SSD)
Rackmounted Industrial PC Product Information
| Technical Specifications | |
|---|---|
| System | |
| Model | IPC-615H-C236 |
| CPU | Intel® Core / Pentium / Celeron 6th–9th Gen (LGA1151), TDP up to 95W |
| Chipset | Intel® C236 |
| Memory | 4 x DDR4 U-DIMM, up to 64GB |
| Display | |
| HDMI | 3840 × 2160 @ 30Hz |
| DVI-D | 1920 × 1200 @ 60Hz |
| VGA | 1920 × 1200 @ 60Hz |
| Multi-Display | Supports triple asynchronous display (HDMI + DVI + VGA) |
| I/O Interfaces | |
| COM | 1 x RS232/RS485/RS422 (COM1), 4 x RS232 (COM2–COM5) |
| USB | 4 x USB 3.0, 4 x USB 2.0, 1 x built-in USB 2.0 dongle |
| LAN | 2 x Intel Gigabit LAN (I219 + I211) |
| Audio | Realtek ALC897 codec (1 x Mic-in, 1 x Line-out, optional chip) |
| Expansion | |
| PCIe | 2 x PCIe x16 (x8 signal), 2 x PCIe x4, 1 x PCIe x4 (x1 signal) |
| PCI | 2 x PCI (32-bit) |
| Storage | |
| M.2 | 1 x M.2 2280 SATA |
| Drive Bays | 3 x 2.5" HDD or 3 x 3.5" HDD, or 1 x 5.25" ODD + 2 x 3.5" HDD |
| OS Support | |
| Microsoft Windows | Windows 7 / 10 |
| Linux | Ubuntu |
| Power | |
| Input Voltage | AC 220V |
| Mechanical | |
| Structure | All-steel box chassis |
| Dimensions | 451.2mm × 426mm × 173mm |
| Net Weight | 15.2 kg |
| Environmental | |
| Operating Temperature | 0°C ~ 45°C (SSD) |
| Storage Temperature | -20°C ~ 60°C (SSD) |
| Humidity | 5%–95% RH @ 40°C, non-condensing |
| Vibration | 1.5 Grms, 5–500Hz (SSD applied, IEC 60068-2-64) |
| Shock | 10G, 11ms (SSD applied, IEC 60068-2-27) |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Model | Power Supply | Description |
| IPC-615H-C236 | AC 220V | 4U rackmount IPC with Intel C236 chipset, supports Intel 6th–9th Gen CPUs, 5 x PCIe, 2 x PCI, HDMI/DVI/VGA, 6 COM, 8 USB, M.2 SATA, 3 x HDD or 5.25" + HDDs |
| Optional Items | |
|---|---|
| CPU Support | Intel® 6th / 7th / 8th / 9th Gen Core / Pentium / Celeron (LGA1151) |
| Memory | DDR4 U-DIMM: 8GB, 16GB, 32GB |
| 2.5" SSD | 128GB, 256GB, 512GB |
| M.2 SSD (2280) | 256GB, 512GB, 1TB |
| 3.5" HDD | 1TB, 2TB, 4TB |
| Expansion | 2 x PCIe x16 (x8 signal), 2 x PCIe x4, 1 x PCIe x4 (x1 signal), 2 x PCI |
| Mounting | 19" standard 4U rackmount configuration |
