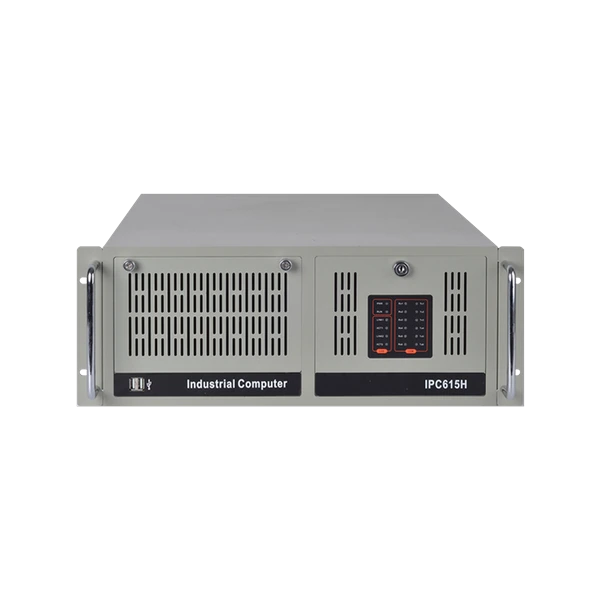

Rackmount Industrial PC IPC615H-XXXX Series

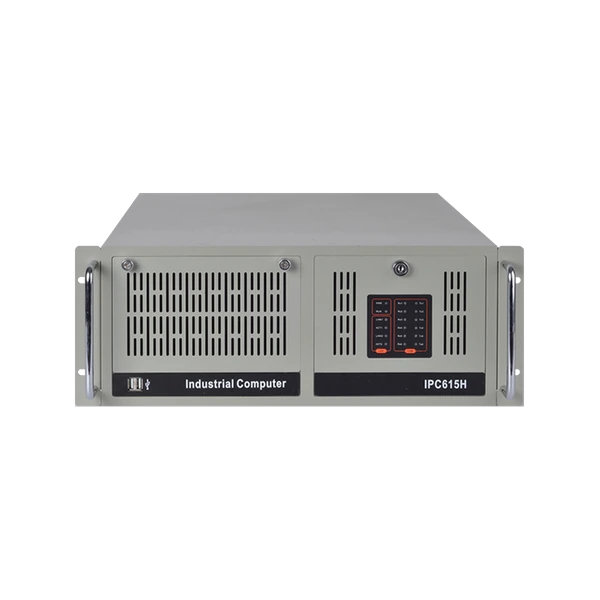

IPC615H-C236
4U rackmount industrial PC with Intel 6th–9th Gen CPU support, triple display, 5 PCIe + 2 PCI slots, M.2 and SATA RAID storage, 6 COM ports, and flexible I/O expansion

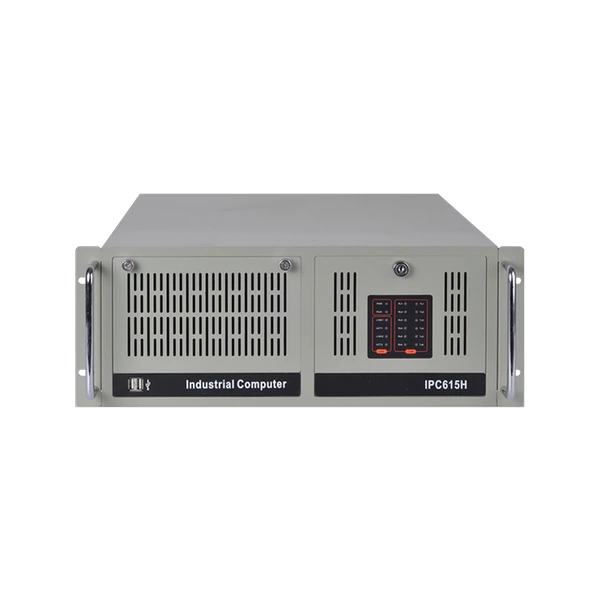

IPC615H-H110
4U rackmount industrial PC with Intel 6th/7th Gen CPU support, triple display, 4 PCI + 3 PCIe slots, mSATA + DVD storage, dual LAN, and high-speed I/O for factory and automation control
IPC615H-H420E
4U rackmount industrial PC with Intel® H420E chipset, 10th/11th Gen processor support, 64GB DDR4, 4×PCIe + 3×PCI, dual LAN, HDMI/DP/VGA, M.2 + 3×SATA3.0, and AC220V input.
IPC615H-H610
4U rackmount industrial PC with Intel® H610 chipset, 12th–14th Gen processors, 64GB DDR4, PCIe Gen4 + PCI expansion, dual LAN, triple display, M.2/SATA storage, and AC220V input.
IPC615H-Q170
4U rackmount industrial PC with Intel® Q170 chipset, 6th–9th Gen LGA1151 processors, 64GB DDR4, 5×PCIe + 2×PCI, dual LAN, triple display, M.2 + 4×SATA3.0, and AC220V input.
IPC615H-Q470
4U rackmount industrial PC with Intel 10th Gen CPU support, 5 PCIe + 2 PCI slots, M.2 NVMe and SATA RAID storage, 6 COM ports, and triple display outputs
IPC615H-Q670
4U rackmount industrial PC with Intel® Q670 chipset, 12th–14th Gen processors, 64GB DDR4, 5×PCIe 4.0 + 2×PCI, dual LAN, triple display, PCIe 4.0 M.2 + 4×SATA3.0, and AC220V input.
IPC615H-Z390
4U rackmount industrial PC with Intel® Z390 chipset, 6th/8th/9th Gen LGA1151 processor support, DDR4 U-DIMM, 3×PCIe + 4×PCI, dual LAN, triple display, mSATA + SATA storage, and AC220V input.
IPC-615H Series | 4U Rackmount Industrial PCs with PCIe/PCI Expansion
The IPC-615H Series combines a rugged all-steel 4U rackmount chassis with processor platforms ranging from Intel® 6th through 14th Gen Celeron®, Pentium®, and Core™ processors. Available chipset configurations include Intel® C236, H110, Z390, Q170, H420E, Q470, H610, and Q670, allowing system integrators to select the performance and expansion architecture required by each application. Depending on model, the series provides up to five PCIe expansion slots plus multiple legacy PCI slots, including PCIe x16 interfaces for compatible GPUs, frame grabbers, high-speed DAQ cards, motion controllers, communication boards, and other application-specific hardware. Newer H610 and Q670 models add PCIe Gen4 connectivity for higher-bandwidth applications. The series also provides DDR4 memory, VGA/HDMI/DisplayPort with dual- or triple-display configurations, dual Gigabit Ethernet on most models, multiple RS232/RS485 serial ports, USB connectivity, and flexible M.2, mSATA, and SATA storage. RAID capability may be implemented on supported configurations according to the final system and storage setup.
Show More
Application Areas
The IPC-615H Series is designed for factory automation, machine control, machine vision inspection, AI-assisted visual inspection, multi-camera vision, industrial data acquisition, automated test equipment, motion control, robotics, CNC and laser machine control, SCADA, production monitoring, and industrial edge computing. Extensive PCIe expansion enables integration of compatible frame grabbers, GPUs, AI accelerators, DAQ cards, EtherCAT or other fieldbus interfaces, motion-control boards, and specialized communication hardware, while legacy PCI slots on selected configurations support modernization of existing industrial systems without replacing proprietary PCI cards. The 4U rackmount form factor makes the IPC-615H particularly suitable for industrial control cabinets, equipment racks, machine-control centers, production test stations, vision-system racks, and centralized factory computing installations.
| Model | Chipset | CPU Generation | Expansion | Display | Storage | Best For |
|---|---|---|---|---|---|---|
| IPC-615H-C236 | Intel® C236 | 6th-9th Gen | 5 PCIe + 2 PCI | Triple Display | M.2 + SATA | Machine vision, DAQ, automation, multi-card expansion |
| IPC-615H-H110 | Intel® H110 | 6th-9th Gen | PCIe + multiple PCI configurations | Dual Display | M.2 / mSATA + SATA depending on configuration | Machine control, equipment retrofit, legacy PCI integration |
| IPC-615H-Z390 | Intel® Z390 | 6th / 8th / 9th Gen | 3 PCIe + 4 PCI | Triple Display | mSATA + SATA | Legacy PCI DAQ, motion control, automated test systems |
| IPC-615H-Q170 | Intel® Q170 | 6th-9th Gen | 5 PCIe + 2 PCI | Triple Display | M.2 + SATA | Multi-camera vision, automation, DAQ, machine control |
| IPC-615H-H420E | Intel® H420E | 10th-11th Gen | 4 PCIe + 3 PCI | Dual Display | M.2 + SATA | Industrial automation, vision, machine control, test systems |
| IPC-615H-Q470 | Intel® Q470 | 10th-11th Gen | 5 PCIe + 2 PCI | Triple Display | M.2 + SATA | Machine vision, industrial AI, DAQ, advanced automation |
| IPC-615H-H610 | Intel® H610 | 12th-14th Gen | PCIe Gen4 + PCI | Triple Display | M.2 + SATA | High-performance vision, edge computing, machine control |
| IPC-615H-Q670 | Intel® Q670 | 12th-14th Gen | 5 PCIe Gen4 + 2 PCI | Triple Display | PCIe M.2 + SATA | AI vision, multi-camera inspection, high-speed DAQ, advanced automation |
