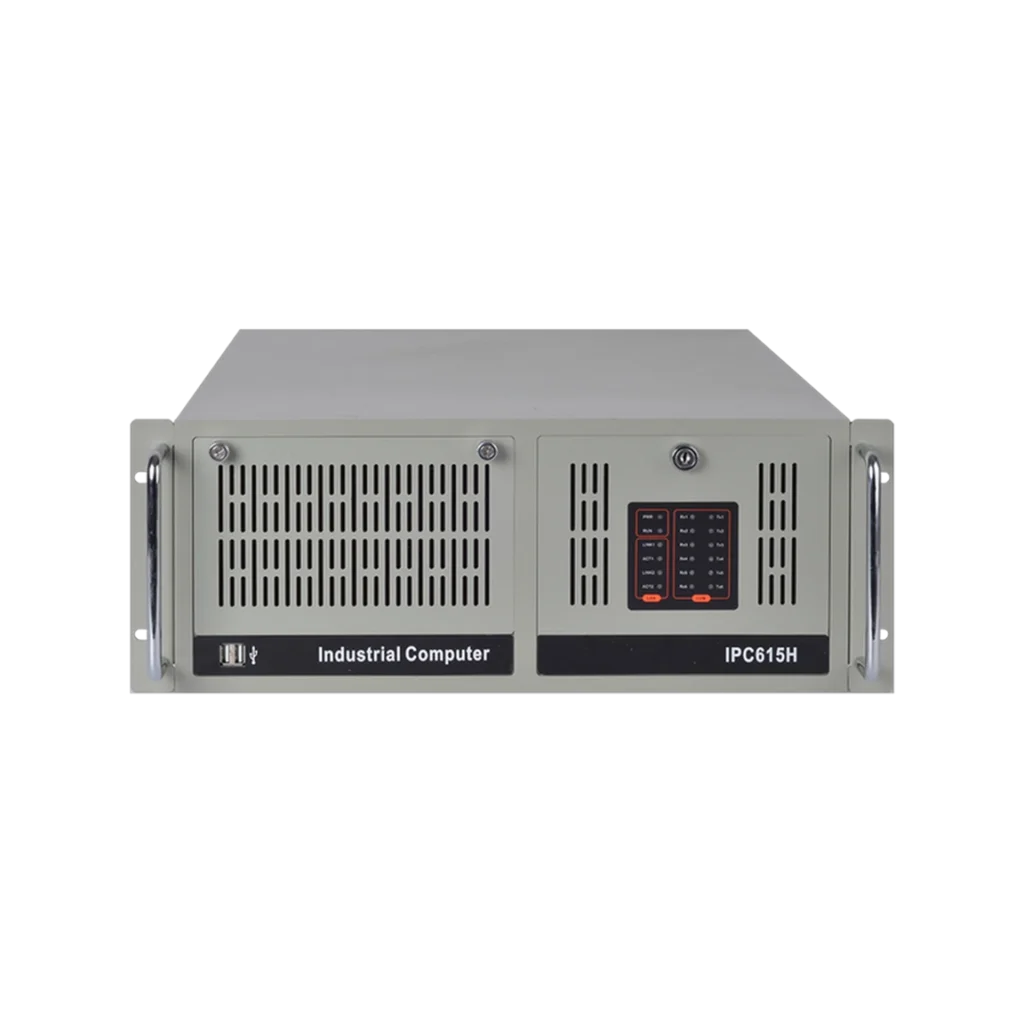

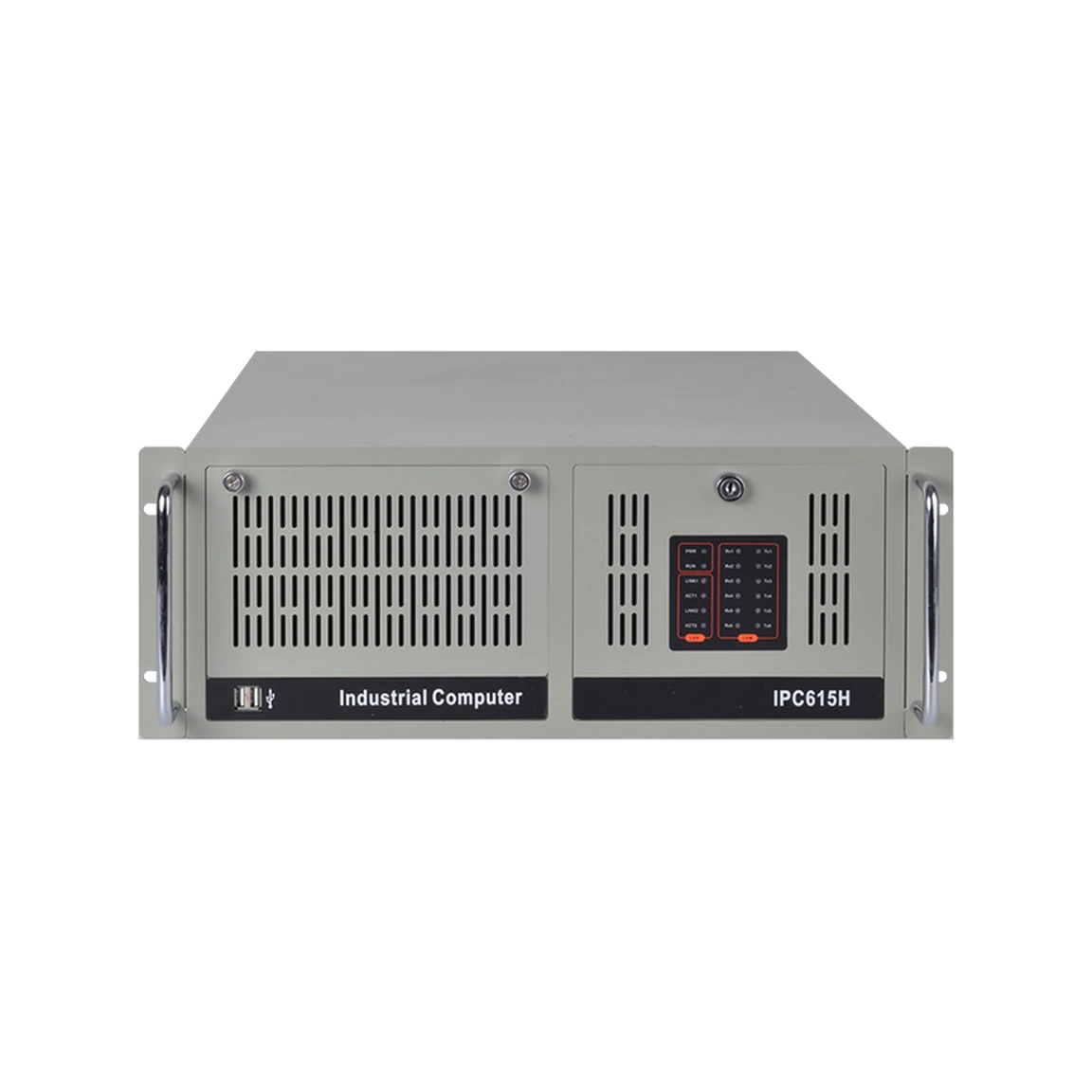

IPC-615H-H420E | High-Performance 4U Rackmount Industrial PC
4U rackmount industrial PC with Intel® H420E chipset, 10th/11th Gen Core-i CPU support, 4 PCIe + 3 PCI slots, dual LAN, dual-display support, M.2/SATA storage, and AC220V input.
Features
- Intel® H420E chipset with 10th/11th Gen Celeron/Pentium/Core-i processor support, up to 125W TDP
- 2 x DDR4 2933/3200MHz SO-DIMM slots, up to 64GB
- 1 x PCIe x16 Gen3 + 3 x PCIe x4 Gen3 expansion slots
- 3 x PCI 32-bit slots for legacy industrial expansion cards
- Dual LAN with Intel i219-V and Intel i210AT controllers
- 6 x COM ports including 2 x RS232/RS485
- HDMI, DisplayPort, and VGA outputs with asynchronous dual-display support
- 1 x M.2 2242/2280 SATA slot + 3 x SATA3.0 interfaces
- 6 x USB3.0 + 2 x USB2.0 with integrated USB2.0 dongle
- All-steel 4U rackmount chassis for industrial cabinet deployment
- AC220V input and CE/FCC Class A compliance
Tower / wall mount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615H-H420E |
| System | |
| CPU | Intel® 10th/11th generation Celeron/Pentium/Core-i series processor, TDP up to 125W |
| Chipset | Intel® H420E Chipset |
| Memory | 2 x DDR4 260-pin 2933/3200MHz SO-DIMM slots, up to 64GB |
| Storage | 1 x M.2 2242/2280 Key M slot (SATA3.0 Signal), 3 x SATA3.0 (up to 6Gb/s) |
| USB | 6 x USB 3.0 ports, 2 x USB 2.0 ports, with an integrated USB 2.0 dongle |
| COM | COM1~COM2: RS232/RS485, COM3~COM6: RS232 |
| LAN | LAN1: Intel i219-V, LAN2: Intel i210AT |
| HDMI | Highest resolution 4096 x 2160@30Hz, supports asynchronous dual display |
| DP | Highest resolution 4096 x 2160@60Hz, supports asynchronous dual display |
| VGA | Highest resolution 1920 x 1080@60Hz, supports asynchronous dual display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCIe | 1 x PCIe x16 (Gen3) slot, 3 x PCIe x4 (Gen3, x1 link) slots |
| PCI | 3 x PCI (32bit) |
| Watch Dogs | 1~255 levels programmable setting |
| OS Support | |
| Microsoft Windows | Windows 10/Linux |
| Power | |
| Input Voltage | AC220V |
| Chassis | |
| Structure | All-steel 4U rackmount |
| Dimensions | 451.2mm x 426mm x 173mm |
| Net Weight | 13Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5~95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| / | IPC-615H-H420E | Barebone system: 10th-11th Gen CPU / 2 DIMM slots for laptop DDR4 RAM / M.2 slot / 4 PCIe slots / 3 PCI slots / Power supply cable not included |
| Optional Items | ||
| If the system provides some optional parts, additional system compatibility certifications may be required in some regions/countries. Please contact NODKA for system compatibility. | ||
