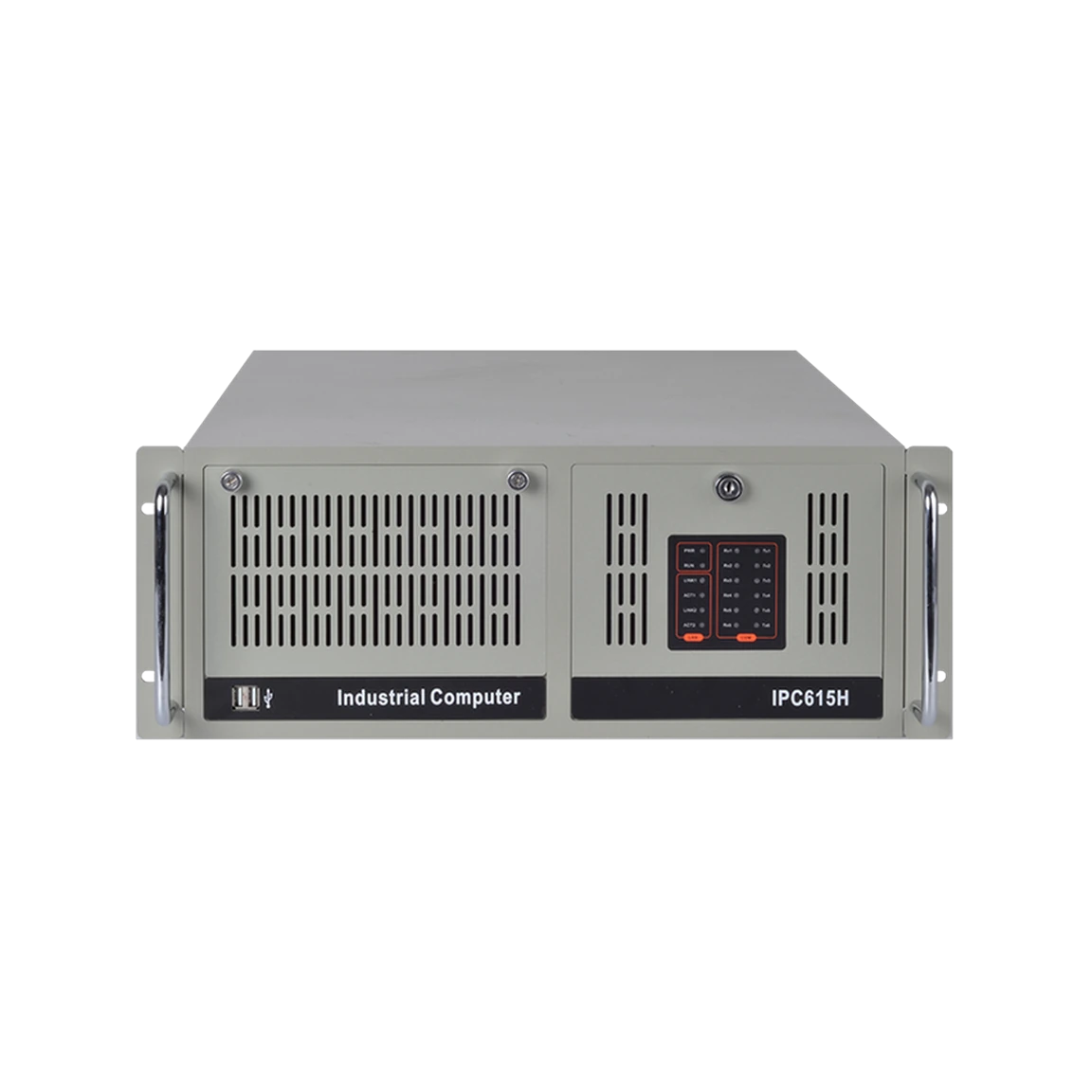

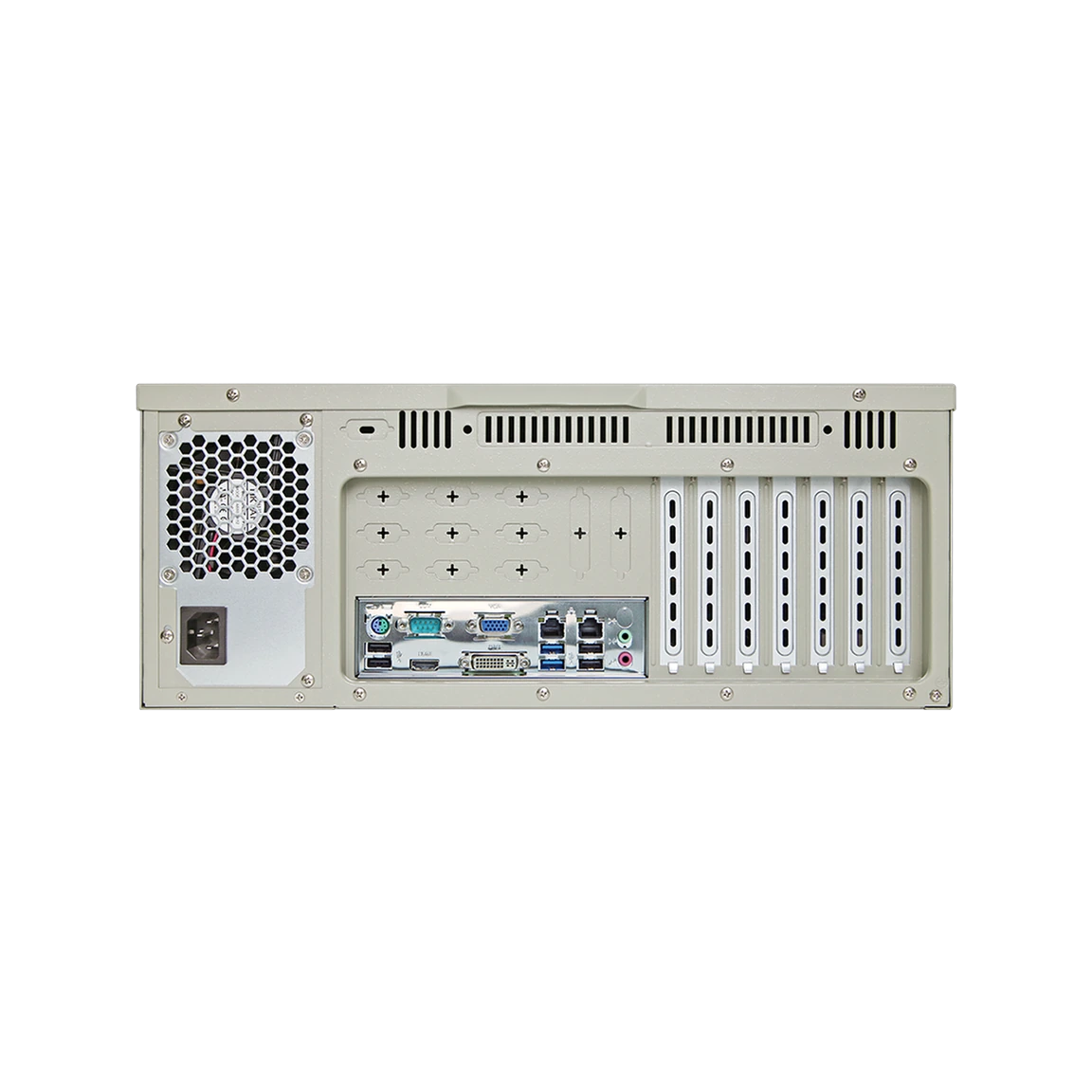

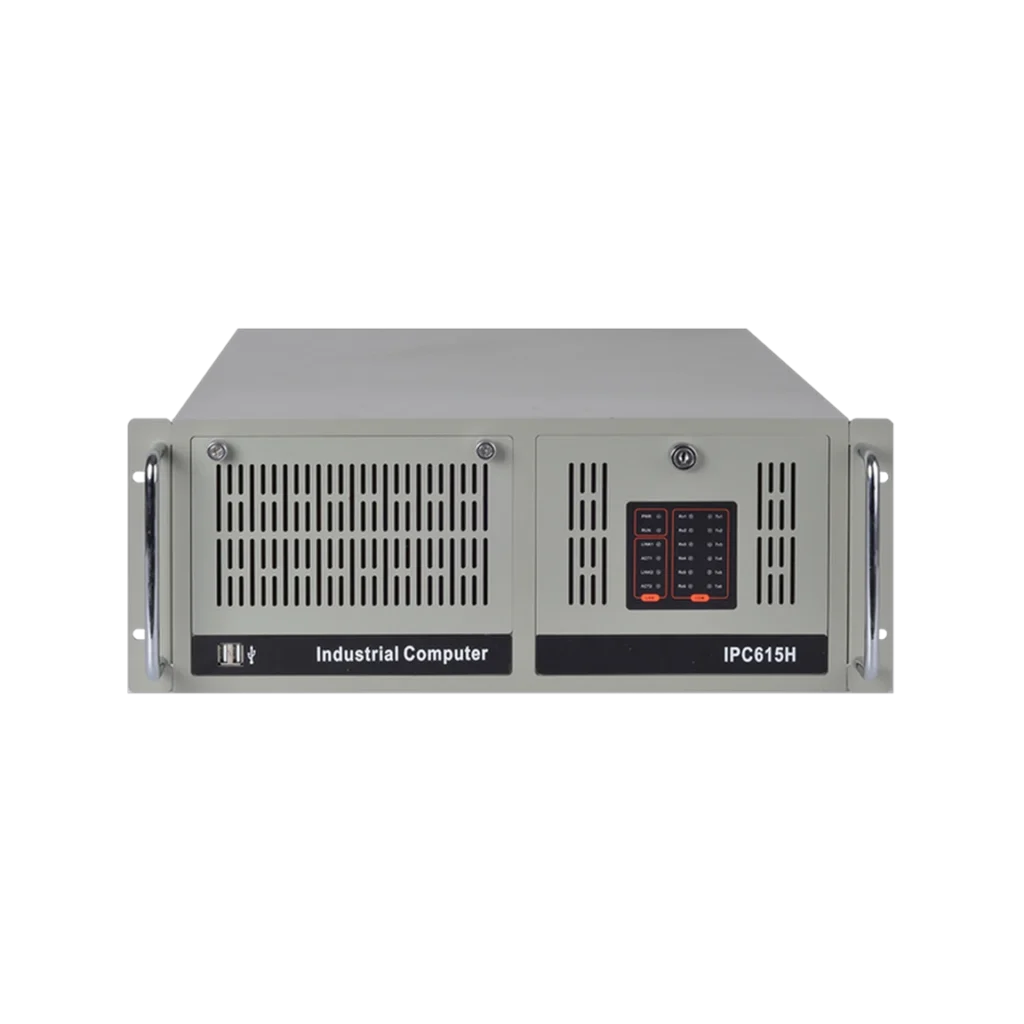

IPC-615H-Z390 | High-Performance 4U Rackmount Industrial PC
4U rackmount industrial PC with Intel® Z390 chipset, 6th/8th/9th Gen LGA1151 CPU support, 3 PCIe + 4 PCI slots, dual LAN, triple display, mSATA/SATA storage, and AC220V input.
Features
- Intel® Z390 chipset with 6th/8th/9th Gen Celeron/Pentium/Core-i LGA1151 processor support, up to 95W TDP
- 2 x DDR4 3200MHz U-DIMM slots, up to 32GB
- 1 x PCIe x16 Gen3 + 2 x PCIe x4 Gen3 expansion slots
- 4 x PCI 32-bit slots for legacy industrial control, DAQ, motion, and interface cards
- 1 x Mini PCI-E slot for Wi-Fi or 4G/3G with SIM card slot
- Dual LAN with Intel i219 and Intel i226 controllers
- 6 x COM ports including 2 x RS232/485
- Triple-display support through HDMI, DVI-D, and VGA
- 1 x mSATA + 4 x SATA3.0 storage interfaces
- 4 x USB3.0 + 4 x USB2.0 with integrated USB2.0 dongle
- All-steel 4U rackmount chassis for industrial cabinet integration
- AC220V input and CE/FCC Class A compliance
Tower / wall mount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615H-Z390 |
| System | |
| CPU | Intel® 6th/8th/9th Generation Celeron/Pentium/Core-i series LGA1151 processor, TDP up to 95W |
| Chipset | Intel® Z390 Chipset |
| Memory | 2 x DDR4 3200MHz U-DIMM slots, up to 32GB |
| Storage | 1 x mSATA, 4 x SATA3.0 (up to 6Gb/s) |
| USB | 4 x USB 3.0 ports, 4 x USB 2.0 ports, with an integrated USB 2.0 dongle |
| COM | COM1/2/5/6: RS232, COM3/4: RS232/485 |
| LAN | LAN1: Intel i219, LAN2: Intel i226 |
| HDMI | Highest resolution 4096 x 2160@30Hz, supports asynchronous triple display |
| DVI-D | Highest resolution 1920 x 1080@60Hz, supports asynchronous triple display |
| VGA | Highest resolution 1920 x 1080@60Hz, supports asynchronous triple display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCIe | 1 x PCIe x16 (Gen3), 2 x PCIe x4 (Gen3) slots, 1 x Mini PCI-E slot (WiFi + 4G/3G, with 1 x SIM card slot) |
| PCI | 4 x PCI (32bit) |
| Watch Dogs | 1~255 levels programmable setting |
| OS Support | |
| Microsoft Windows | Windows 7/10 |
| Power | |
| Input Voltage | AC220V |
| Chassis | |
| Structure | All-steel 4U rackmount |
| Dimensions | 451.2mm x 426mm x 173mm |
| Net Weight | 13Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5~95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
Download Links
Click the link below to download datasheets or drivers:
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| / | IPC-615H-Z390 | Barebone system: 6th/8th/9th Gen CPU / 2 U-DIMM slots for laptop DDR4 RAM / mSATA / 3 PCIe slots / 4 PCI slots / Power supply cable not included |
| Optional Items | ||
| If the system provides some optional parts, additional system compatibility certifications may be required in some regions/countries. Please contact NODKA for system compatibility. | ||
