| Technical Specifications |
| Model Name |

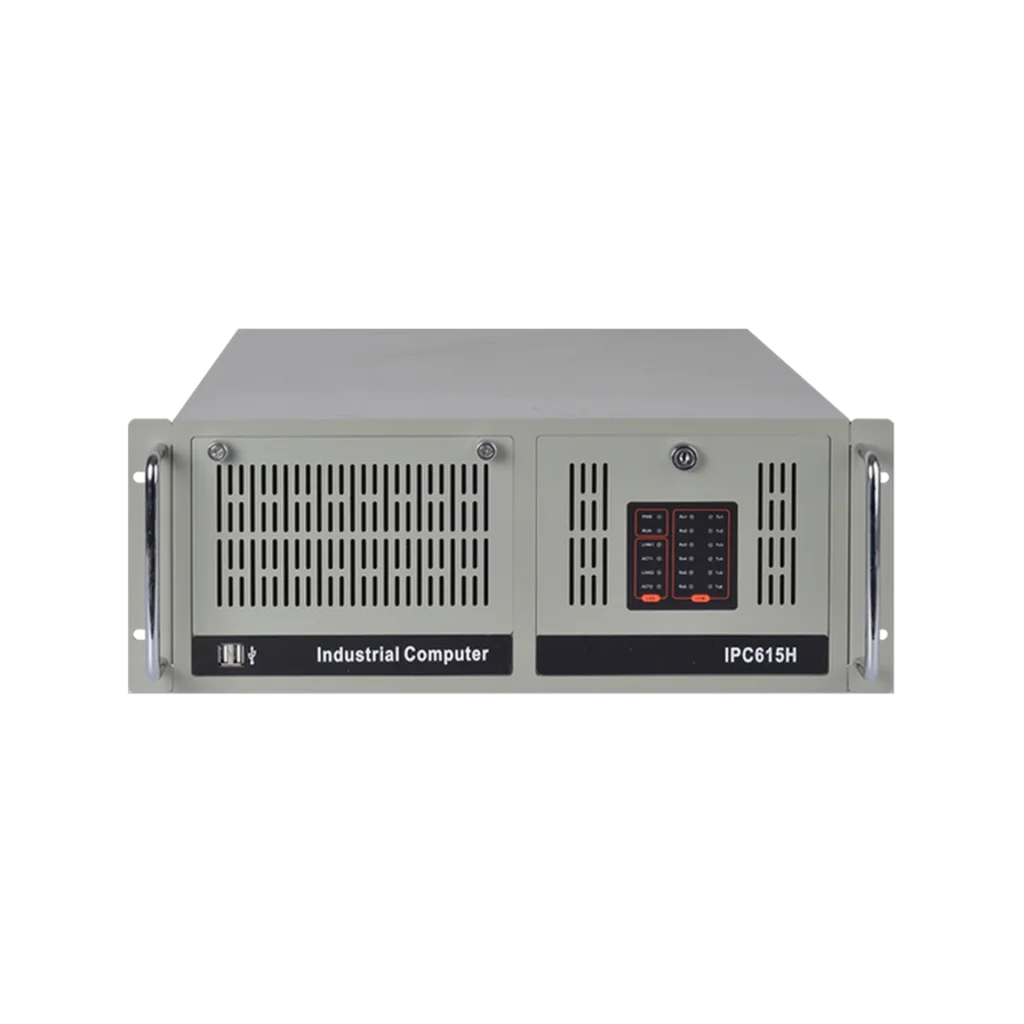

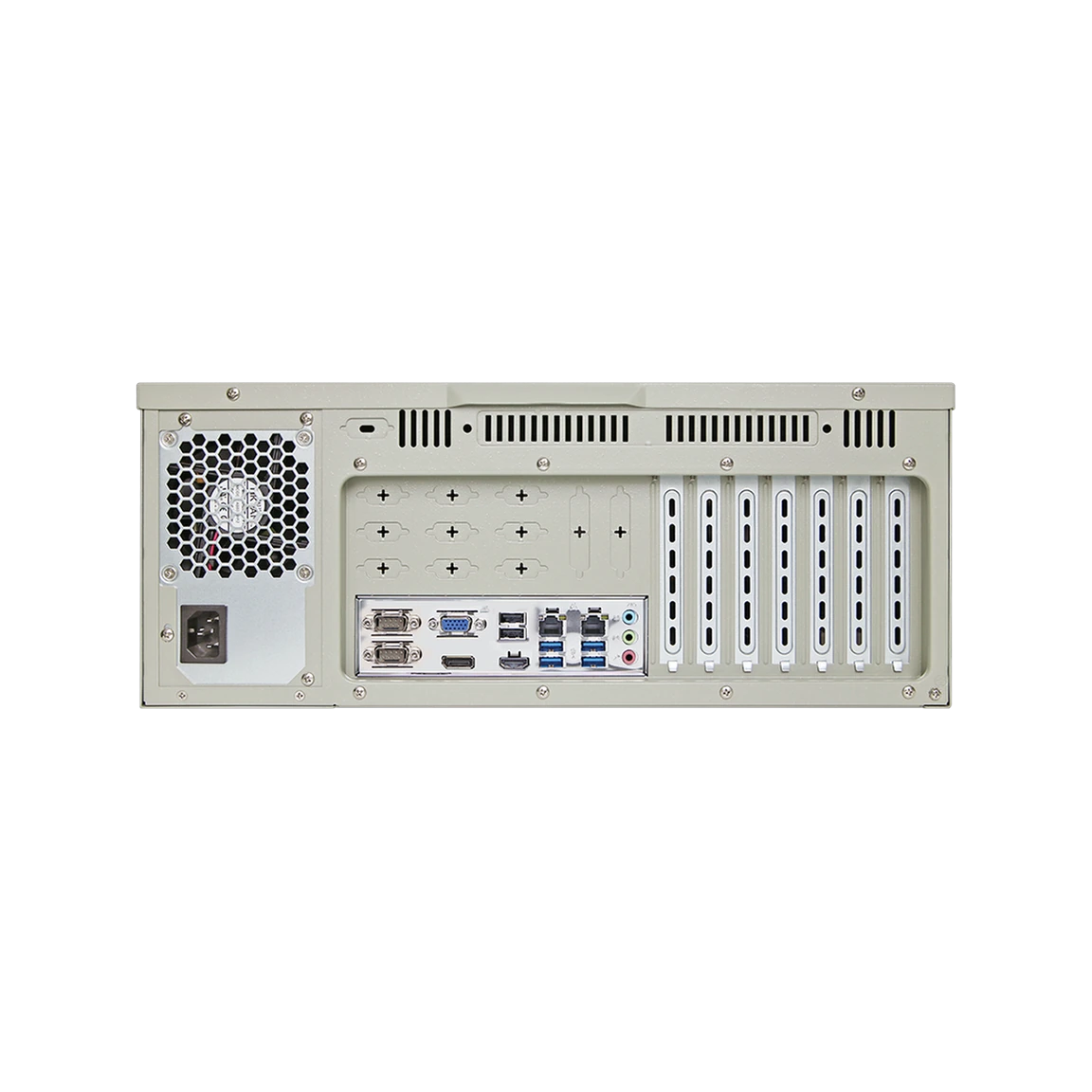

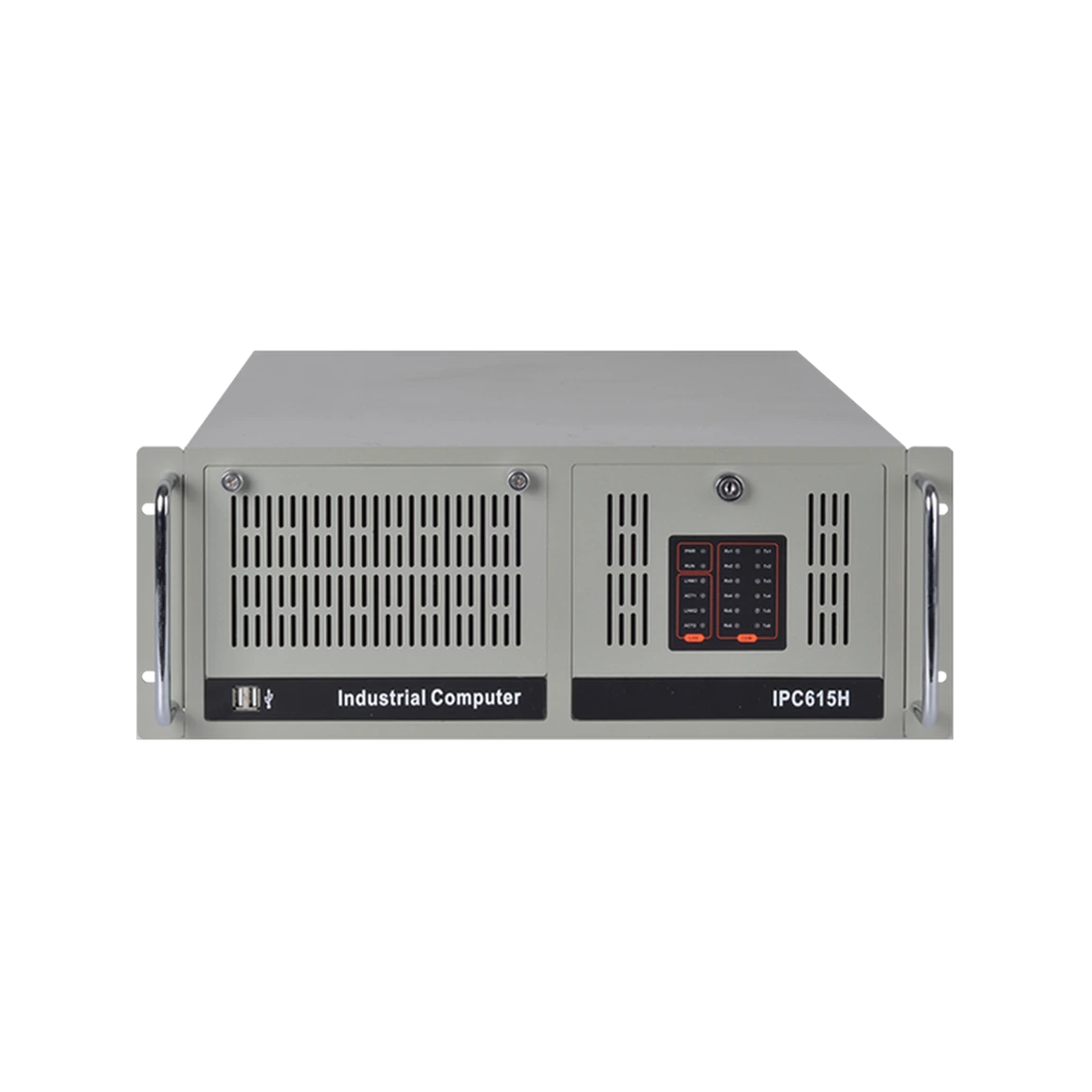

IPC-615H-Q170 |
| System |
| CPU |
Intel® 6th/7th/8th/9th Generation Celeron/Pentium/Core-i series LGA1151 processor, TDP up to 95W |
| Chipset |
Intel® Q170 Chipset |
| Memory |
2 x DDR4 260-pin 1866/2133/2400/2666MHz SO-DIMM slots, up to 64GB |
| Storage |
1 x M.2 2242/2280 Key M slot (SATA3.0 Signal), 4 x SATA3.0 (up to 6Gb/s) |
| USB |
6 x USB 3.0 ports, 2 x USB 2.0 ports, with an integrated USB 2.0 dongle |
| COM |
COM1~COM2: RS232/RS485, COM3~COM6: RS232 |
| LAN |
LAN1: Intel i219-V, LAN2: Intel i210AT |
| HDMI |
Highest resolution 4096 x 2160@30Hz, supports asynchronous triple display |
| DP |
Highest resolution 4096 x 2160@60Hz, supports asynchronous triple display |
| VGA |
Highest resolution 1920 x 1080@60Hz, supports asynchronous triple display |
| Audio |
Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCIe |
2 x PCIe x16 (Gen3) slots (Default: 2 x x8 signals), 2 x PCIe x4 (Gen3) slots, 1 x PCIe x4 (Gen3, x1 link) slot |
| PCI |
2 x PCI (32bit) |
| Watch Dogs |
1~255 levels programmable setting |
| OS Support |
| Microsoft Windows |
Windows 7/10 |
| Power |
| Input Voltage |
AC220V |
| Chassis |
| Structure |
All-steel 4U rackmount |
| Dimensions |
451.2mm x 426mm x 173mm |
| Net Weight |
13Kg |
| Environment |
| Work Temperature |
0°C ~ 45°C (Use SSD) |
| Storage Temperature |
-20°C ~ 60°C (Use SSD) |
| Relative Humidity |
5~95% RH@40°C, non-condensing |
| Vibration |
SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock |
SSD applied: 10G, IEC 60068-2-27, Half sine wave, lasting 11ms |
| EMC |
CE/FCC Class A |
