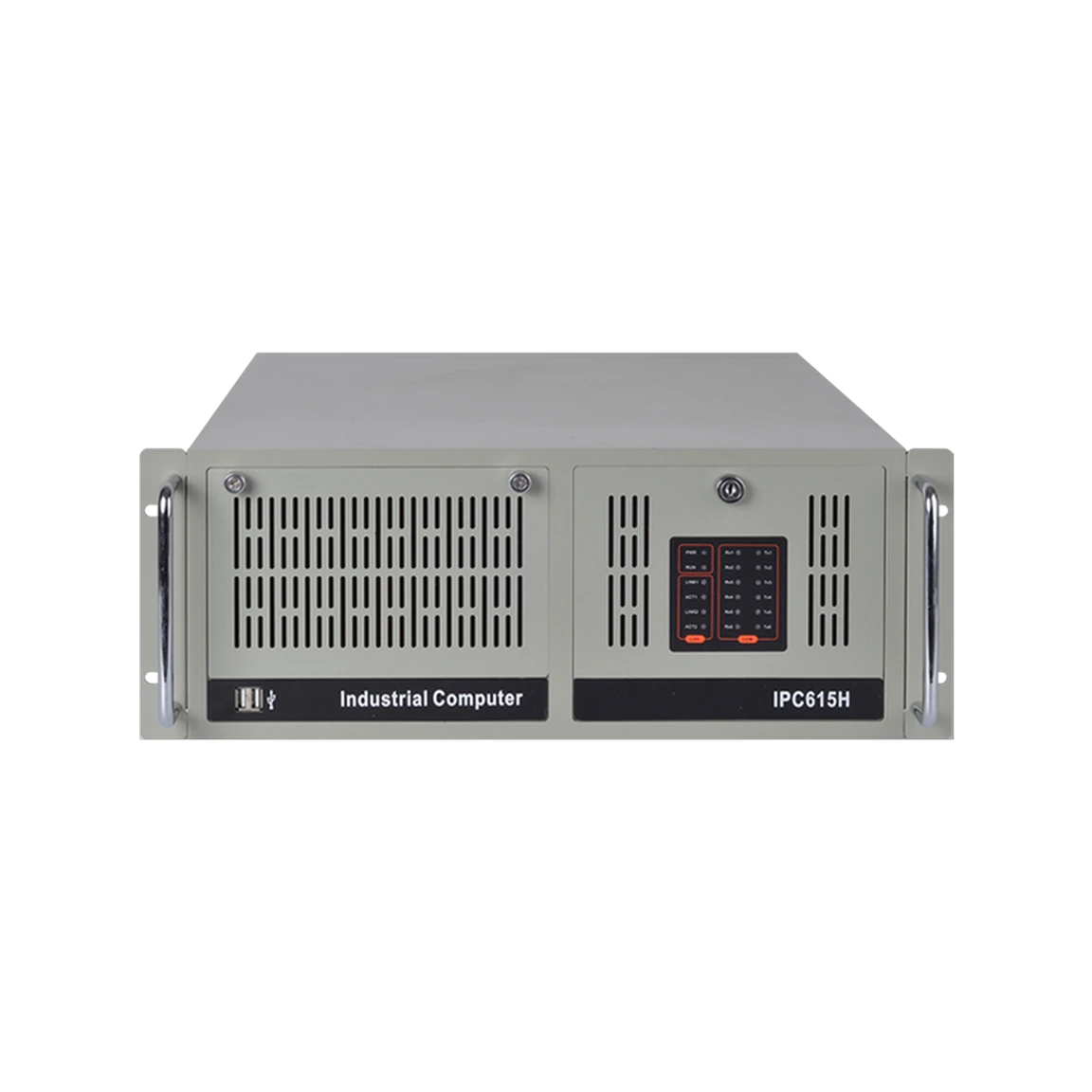

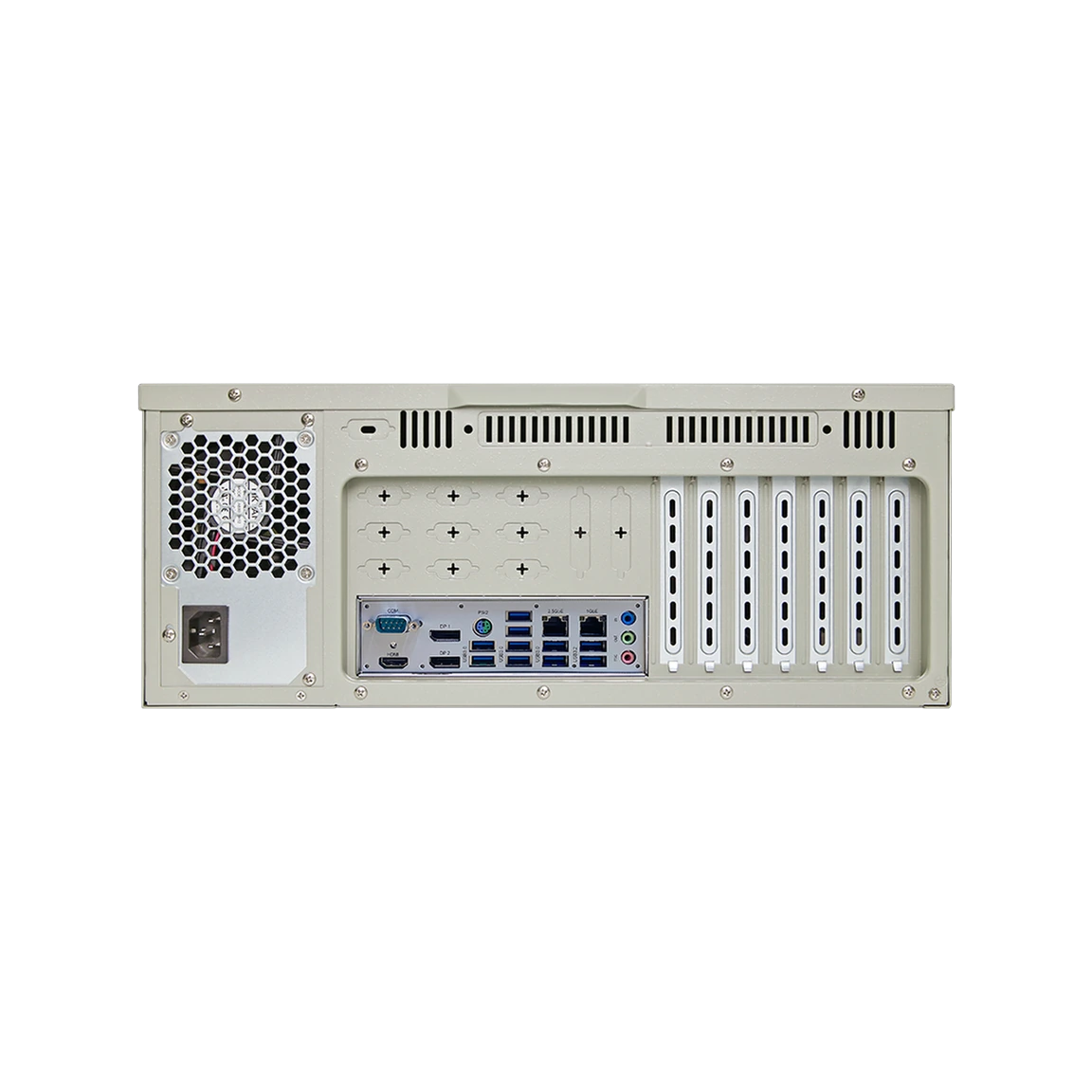

IPC-615H-W680 | 4U Rackmount Industrial PC with Gen5 PCIe and 13th Gen Intel CPU Support

W680 chipset rackmount PC with support for LGA1700 CPUs, PCIe Gen5/4/3 slots, 2 PCI, dual M.2 NVMe SSDs, 6 COM ports, 14 USB, and dual Gigabit LAN

4U rackmount PC with robust all-steel chassis
Supports Intel(r) 12th/13th Gen Core / Pentium / Celeron CPUs (LGA1700)
Expansion: 1 x PCIe x16 (Gen5), 1 x PCIe x16 (x4, Gen4), 1 x PCIe x4 (Gen4), 2 x PCIe x4 (Gen3), 2 x PCI
Display: 1 x HDMI + 2 x DP, supports triple independent 4K display
5 COM ports: 2 x RS232/422/485, 3 x RS232
14 USB ports: 10 x USB 3.0, 4 x USB 2.0 (rear + internal vertical)
Dual Intel Gigabit LAN (i226-LM + i219-V) for fast, reliable networking
Storage: 2 x M.2 NVMe SSDs, support for up to 3 x 3.5″ or 2.5″ HDDs
RAID support: 0 / 1 / 5 (via chipset)
ATX power supply: 400W standard, options up to 750W
Operating temperature: 0°C to 45°C (SSD)

Technical Specifications
System
Model	IPC-615H-W680
CPU	Intel® 12th/13th Gen Core / Pentium / Celeron (LGA1700), TDP up to 125W
Chipset	Intel® W680
Memory	4 x U-DIMM DDR5-4800MHz, up to 128GB
Display
HDMI	3840 × 2160 @ 60Hz (Supports asynchronous triple display)
DP x2	3840 × 2160 @ 60Hz (Supports asynchronous triple display)
I/O Interfaces
USB	10 x USB 3.0, 2 x USB 2.0, 2 x internal USB 2.0 dongles
COM	2 x RS232/422/485 (COM1/2), 3 x RS232 (COM3–5)
LAN	2 x Intel Gigabit LAN (i226-LM + i219-V)
Audio	Realtek ALC897, 1 x Mic-in, 1 x Line-in, 1 x Line-out
Expansion
PCI	2 x PCI (32-bit)
PCIe	1 x PCIe x16 (Gen5), 1 x PCIe x16 (x4 signal, Gen4), 1 x PCIe x4 (Gen4), 2 x PCIe x4 (Gen3)
Storage
M.2	2 x M.2 Key-M (2242/2280), supports SATA + NVMe
Drive Bays	3 x 2.5" HDD, or 3 x 3.5" HDD, or 1 x 5.25" optical + 2 x 3.5" HDD
OS Support
Windows	Windows 10 x64, Windows 11 x64
Linux	Ubuntu 21.04
Power
Input Voltage	AC 220V
Mechanical
Structure	All-steel chassis
Dimensions	451.2mm × 426mm × 173mm
Net Weight	15.2 kg
Environmental
Operating Temperature	0°C ~ 45°C (SSD)
Storage Temperature	-20°C ~ 60°C (SSD)
Humidity	5–95% RH @ 40°C, non-condensing
Vibration	1.5 Grms, 5–500Hz (SSD applied, IEC 60068-2-64)
Shock	10G, 11ms (SSD applied, IEC 60068-2-27)
EMC	CE/FCC Class A

Ordering Information
Model	Power Supply	Description
IPC-615H-W680-P400	400W ATX	4U rackmount industrial PC with Intel W680 chipset, supports 12th/13th Gen CPUs, 2 x M.2, 5 x PCIe (Gen5/Gen4/Gen3), 2 x PCI, HDMI + 2 DP, dual LAN, 5 COM, 14 USB, Audio

Optional Items
CPU Support	Intel® 12th/13th Gen Core / Pentium / Celeron Desktop CPU (LGA1700)
Memory	4GB / 8GB / 16GB / 32GB / 64GB / 128GB DDR5-4800 U-DIMM
Storage	2 x M.2 NVMe/SATA SSD, 3 x 2.5” or 3 x 3.5” HDD, or 2 x 3.5” HDD + 1 x 5.25” optical drive
Expansion	1 x PCIe x16 (Gen5), 1 x PCIe x16 (x4, Gen4), 1 x PCIe x4 (Gen4), 2 x PCIe x4 (Gen3), 2 x PCI
Mounting	4U standard 19" rackmount configuration
