IPC-615H2-Q470 | 2U Rackmount Industrial PC with 5 PCIe Slots
2U rackmount industrial PC with Intel® Q470 chipset, 10th/11th Gen Celeron®, Pentium® and Core™ CPU support, 5 PCIe + 2 PCI slots, dual GbE, 6 COM, triple display, M.2/SATA RAID storage, and AC100-240V input.
Features
- Intel® Q470 chipset with Intel® 10th/11th Gen Celeron®, Pentium®, and Core™ processor support, TDP up to 125W
- 2 x DDR4 260-pin 2933MHz SO-DIMM slots supporting up to 64GB memory
- 2 x PCIe x16 Gen3 slots with default 2 x8 links for high-bandwidth expansion cards
- 3 x PCIe x4 Gen3 slots for additional industrial communication, vision, DAQ, and control cards
- 2 x 32-bit PCI slots for legacy industrial expansion hardware
- Dual Gigabit Ethernet with Intel® i219-V and Intel® i210AT controllers
- COM1-2 support RS232/RS485 with extensible COM3-6 RS232 interfaces
- VGA, HDMI, and DisplayPort outputs with asynchronous triple-display support
- HDMI resolution up to 4096 x 2160@30Hz and DisplayPort up to 4096 x 2160@60Hz
- 1 x M.2 2242/2280 Key M slot; 10th Gen CPU configuration supports SATA protocol and 11th Gen supports PCIe protocol
- 2 x SATA3.0 interfaces with RAID 0/1/5/10 support
- 6 x USB3.0 + 2 x USB2.0 with built-in USB2.0 dongle
- Realtek ALC897 audio with Mic-in, Line-in, and Line-out
- Compact 2U all-steel rackmount chassis measuring 430 x 456.5 x 89mm
- Universal AC100-240V, 50-60Hz input
- 0°C to 45°C operating temperature with SSD and CE/FCC Class A compliance
Tower / wall mount Industrial PC Product Information
| Technical Specifications | |
|---|---|
| Model Name | IPC-615H2-Q470 |
| System | |
| CPU | Intel® 10th/11th generation Celeron/Pentium/Core-i series processor, TDP up to 125W |
| Chipset | Intel® Q470 Chipset |
| Memory | 2 x DDR4 260-pin 2933MHz SO-DIMM slots, up to 64GB |
| Storage | 1 x M.2 2242/2280 Key M slot (10th Gen only supports SATA protocol; 11th Gen supports PCIe protocol), 2 x SATA3.0 (up to 6Gb/s), supports RAID 0/1/5/10 |
| USB | 6 x USB3.0 (5Gbps), 2 x USB2.0, built-in USB2.0 dongle |
| COM | COM1-2: RS232/RS485; extensible COM3-6: RS232 |
| LAN | LAN1: Intel i219-V LAN2: Intel i210AT |
| VGA | Highest resolution 1920 x 1080@60Hz, supports asynchronous triple display |
| HDMI | Highest resolution 4096 x 2160@30Hz, supports asynchronous triple display |
| DP | Highest resolution 4096 x 2160@60Hz, supports asynchronous triple display |
| Audio | Realtek ALC897 codec, 1 x Mic-in, 1 x Line-in, 1 x Line-out |
| PCI | 2 x PCI (32-bit) |
| PCIE | 2 x PCIe x16 (Gen3) slots (default 2 x8 link) 3 x PCIe x4 (Gen3) slots |
| Watch Dogs | 1-255 levels programmable setting |
| OS Support | |
| OS | Windows 10 / Windows 11, Linux |
| Power | |
| Input Voltage | AC100-240V, 50-60Hz |
| Chassis | |
| Structure | All-steel box structure |

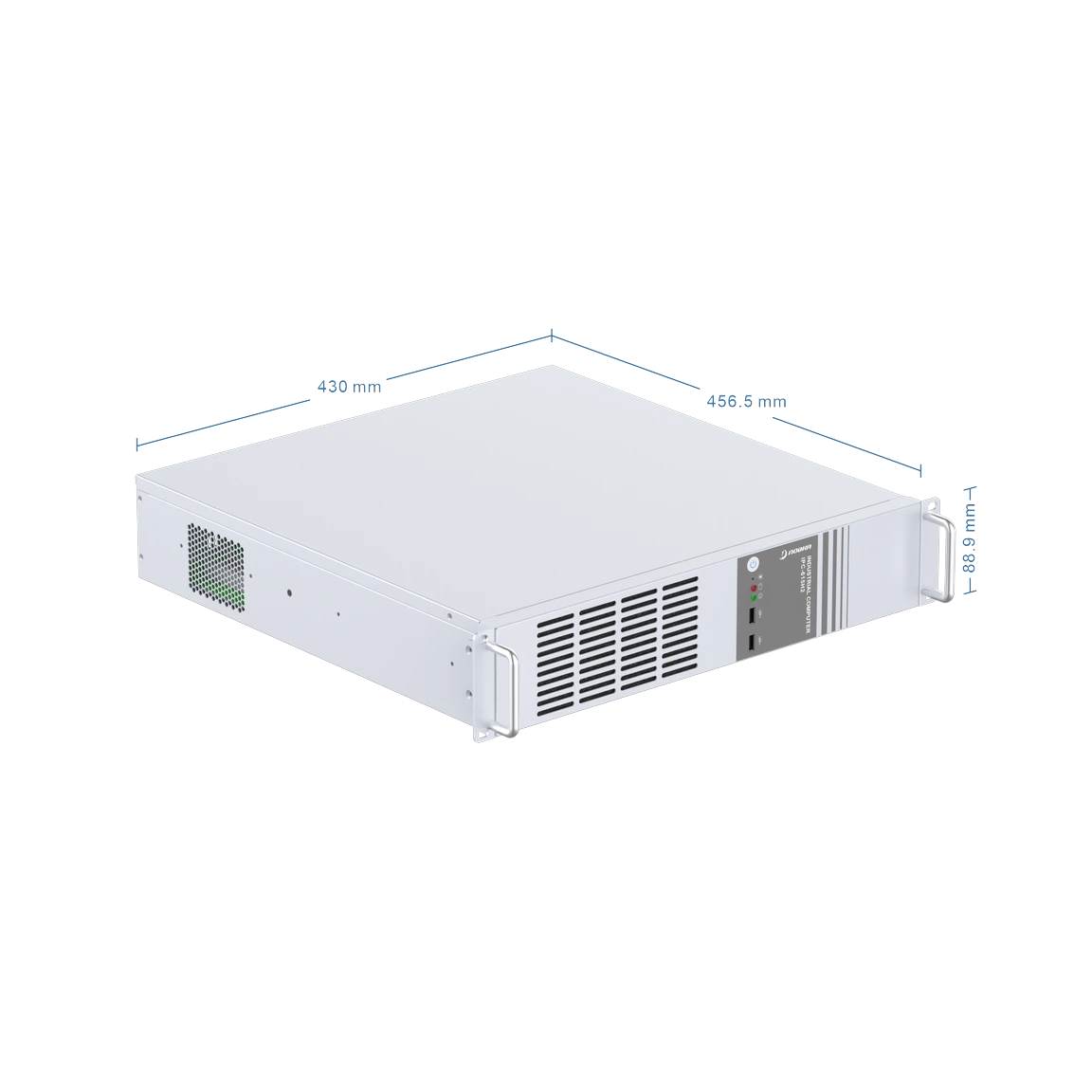

| Dimensions | (D)430mm x (W)456.5mm x (H)89mm |
| Net Weight | 8Kg |
| Environment | |
| Work Temperature | 0°C ~ 45°C (Use SSD) |
| Storage Temperature | -20°C ~ 60°C (Use SSD) |
| Relative Humidity | 5~95% RH@40°C, non-condensing |
| Vibration | SSD applied: 1.5Grms, IEC 60068-2-64, random, 5~500Hz, 1 hr/axis |
| Shock | SSD applied: 10G, IEC 60068-2-27, half sine wave, lasting 11ms |
| EMC | CE/FCC Class A |
| Ordering Information | ||
|---|---|---|
| Part Number | Model Name | Description |
| B64.615H2.Q4.0001 | IPC-615H2-Q470 | Barebones: 10/11 generation CPU / dual memory notebook DDR4 slot / M.2 hard disk bay / 5 PCIe / 2 PCI / including 1.8M GB power cord |
| Options | ||
| CPU | 10100, 10400, 11400, 11700, ... | |
| DDR4 SO-DIMM | 8GB, 16GB, 32GB | |
| 2.5 Solid Hard Drives | 128GB, 256GB, 512GB, ... | |
| M.2 SSD (2242/2280) | 256GB, 512GB, 1TB, ... | |
| 3.5 Inch Hard Drive | 1TB, 2TB, 4TB, ... | |
