Advanced Laser Cutting and CNC Solutions

with eLink Long-Distance HMI Display Transmission

Optimize your CNC and Laser Cutting Operations

At Nodka, we understand the demands of modern industrial automation, especially in CNC and laser cutting applications where precision, reliability, and safety are paramount. Our advanced solution, featuring the eBOX-3625 fanless industrial computer and LC5000 series button-integrated touch monitor HMI, is designed to excel in these environments. Central to our offering is the eLink HDBaseT technology, which facilitates long-distance transmission of display, touch, and control signals, making it possible to operate HMIs remotely and safely.



Our solutions are ideally suited for industries such as metal fabrication, automotive, aerospace, and any sector requiring high-precision CNC machining or laser cutting. The integration of eLink HDBaseT technology ensures that your Human-Machine Interfaces (HMIs) can be located up to 100 meters away from the industrial PC, enabling safe and efficient remote control in challenging industrial environments.

Discover how Nodka’s solutions can transform your CNC and laser cutting operations.

Contact Us
Call us anytime
909-594-7630

Use Case Overview

Nodka’s eBOX-3625 and LC5000 series HMI, combined with eLink HDBaseT technology, offer a powerful solution for extending the reach of your control systems in CNC and laser cutting applications. This setup not only enhances operational safety by enabling remote operation but also ensures high precision and reliability in demanding industrial environments.

Overview: The eBOX-3625 is a powerful, fanless industrial PC designed for demanding environments. It supports the complex processing needs of CNC and laser cutting machinery, handling everything from real-time data processing to precise control commands.

Key Features:

  • Fanless Design: Ensures durability and reliability in harsh industrial conditions.
  • Built-in eLink Long-Distance HMI Signal Transmitter: Facilitates long-distance transmission of video, touch, and control signals, enabling remote HMI access and operation.
  • High Connectivity: Supports three gigabit Ethernet ports and a range of peripherals, making it a versatile solution for various industrial application requirements like EtherCAT, motion control and height control.

Application in CNC and Laser Cutting: In CNC and laser cutting environments, the eBOX-3625 acts as the central hub, processing complex tasks like motion control and real-time monitoring. With eLink Transmitter, the system transmits these processes to a remote HMI, allowing operators to control the machinery from a safe, convenient location.

Overview: The LC5000-E215TF is a robust, 21.5-inch touch monitor with a high-definition display and customizable button interface, designed for industrial automation.

Key Features:

  • High-Resolution Display: Provides clear, detailed visuals essential for monitoring and control.
  • Customizable Button Panel: Allows for quick access to essential functions, improving operational efficiency.
  • Durability: Built to withstand harsh industrial environments, with IP65-rated waterproofing and dustproofing.

Application in CNC and Laser Cutting: Paired with the eBOX-3625 via eLink HDBaseT, the LC5000 HMI can be positioned up to 100 meters away from the central control unit. This setup is ideal for operators needing to manage complex CNC or laser cutting processes remotely, ensuring both safety and productivity.

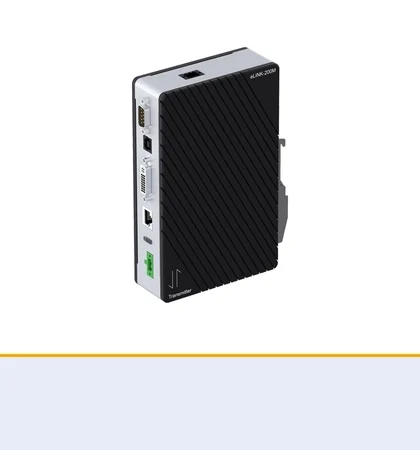

Overview: eLink HDBaseT is the backbone of Nodka’s remote display solution, enabling the long-distance transmission of critical signals to and from the HMI.

Key Benefits:

  • HMI Remote Display Extender: Extend the reach of your HMI displays over long distances without signal loss.
  • Long-Distance HMI Signal Transmission: Transmit video, touch, and control signals up to 100 meters, ensuring operational integrity across large facilities.
  • Industrial Display Link Solutions: Simplify the setup with a single Cat5e/6 cable, reducing installation complexity and costs.

Remote HMI Access: Operate your CNC and laser cutting machinery from a safe, remote location, enhancing both safety and efficiency.

Questions?

Connect with our experts to discuss how Nodka can support your specific design and development challenges.

We would be delighted to meet you and discuss how our solutions can support your upcoming projects. To learn more about our customization and OEM/ODM services, please contact us.
